OKW - Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles. Depending on requirements, there is a choice of different cover designs to protect the operating and
Lei 239.00
Lei 200.84
In stock
SKU
B4016217
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Basic enclosure with terminal compartment, ergonomic operating area, various cover designs, quick-action lock, suitable for Eurocards 100 x 160 mm.

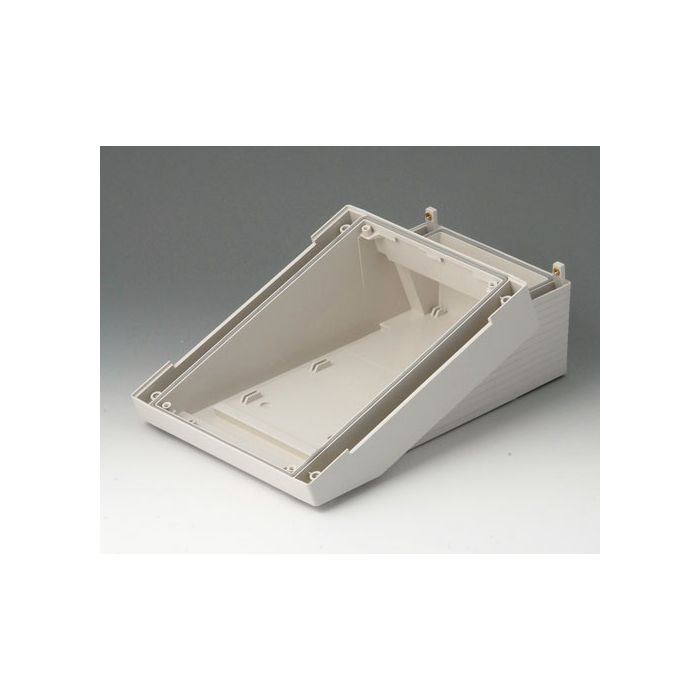

Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles. Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. Suitable for the installation of Eurocards 100 x 160 mm. Version Machined for assembly of hinge and quick-action lock Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | ABS (UL 94 HB) |
|---|---|
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 168 mm |
| Height | 101 mm |
| Depth | 272 mm |
| Protection class | IP 54 opt. |
| PCB Length, Base | 255 mm |
| PCB Width, Base | 124 mm |
| Manufacturer | OKW |
