OKW - Protective housing for DATEC-TERMINAL M with PCB fixing and membrane keyboard protection.
Lei 169.00
Lei 142.02
In stock
SKU
B4016657
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

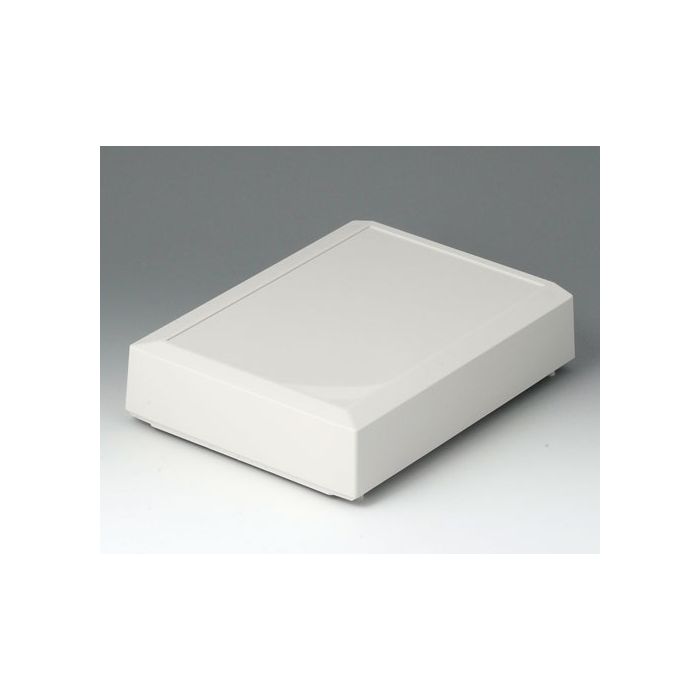

Protective housing for DATEC-TERMINAL M with PCB fixing and membrane keyboard protection.
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | ABS (UL 94 HB) |
|---|---|
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 168 mm |
| Height | 50 mm |
| Depth | 220 mm |
| PCB Length, Base | 209 mm |
| PCB Width, Base | 128 mm |
| Keypad Length | 194.9 mm |
| Keypad Width | 128.9 mm |
| Manufacturer | OKW |
