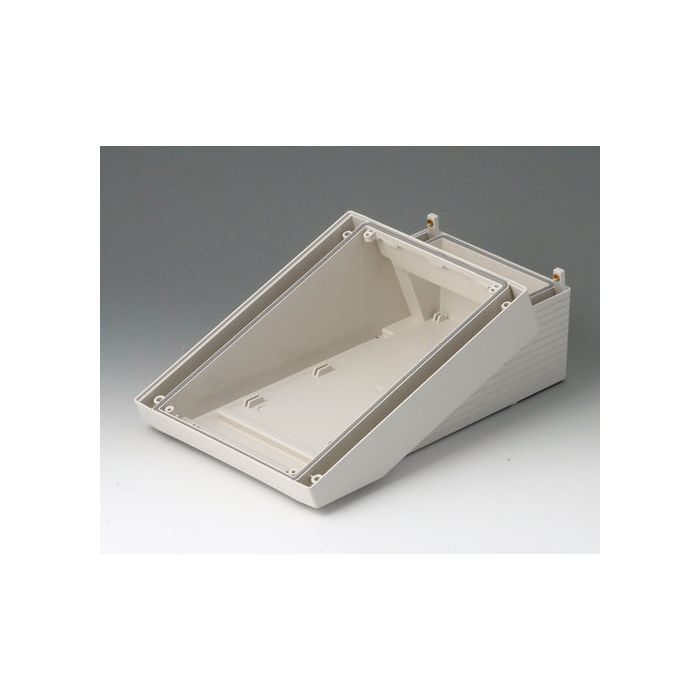

OKW - Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm. Basic housing, unmachined. 1 basic housing, 4 screws, 4 non slip feet,
Lei 184.00
Lei 154.62
In stock
SKU
B4016117
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Basic case with terminal compartment for Eurocards 100 x 160 mm. Ergonomically inclined operating area. Includes 1 basic housing, 4 screws, 4 non-slip feet, sealing kit.
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm. Basic housing, unmachined. 1 basic housing, 4 screws, 4 non slip feet, sealing kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | ABS (UL 94 HB) |
|---|---|
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 168 mm |
| Height | 101 mm |
| Depth | 272 mm |
| Protection class | IP 54 opt. |
| PCB Length, Base | 255 mm |
| PCB Width, Base | 124 mm |
| Manufacturer | OKW |
