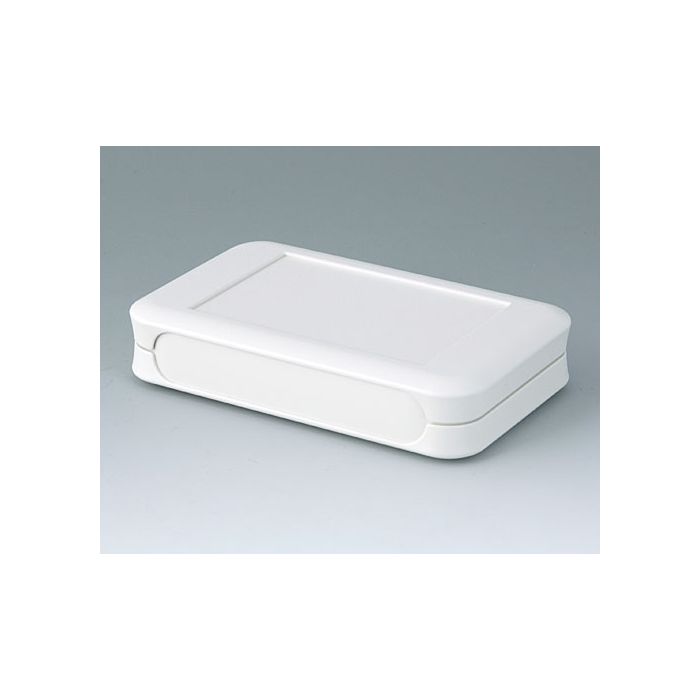

OKW - Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE r
Lei 67.00
Lei 56.30
In stock
SKU
A9052107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Unique pocket-format case with width-oriented design, recessed area for membrane keyboards, PCB fixing options, optional rings for extra installation height, IP 54 protection with soft TPE ring. Battery compartment not included. Top and bottom parts, assembly kit included.
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible. Version: Without battery compartment. Supply: Top and bottom part, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | ABS (UL 94 HB) |
|---|---|
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 117 mm |
| Length | 73 mm |
| Height | 24 mm |
| Protection class | IP 54 opt. |
| PCB Length, Base | 63 mm |
| PCB Width, Base | 108 mm |
| PCB Length, Top | 63 mm |
| PCB Width, Top | 108 mm |
| Keypad Length | 51.5 mm |
| Keypad Width | 77.5 mm |
| Manufacturer | OKW |
