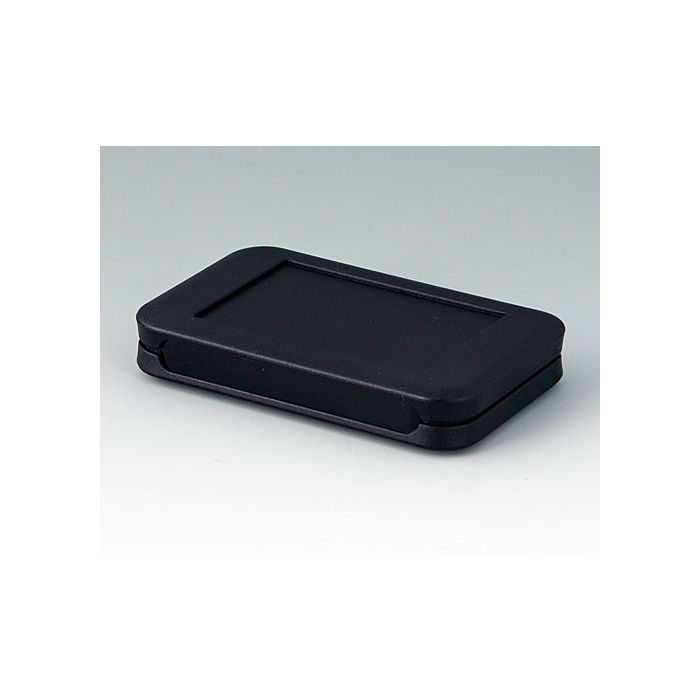

OKW - Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE r
Lei 52.00
Lei 43.70
In stock
SKU
A9050209
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Unique pocket-format case with width-oriented design, recessed area for membrane keyboards, fixing options for PCBs, and optional intermediate rings for increased installation height.
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | PMMA (IR) (UL 94 HB) |
|---|---|
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 82 mm |
| Length | 51 mm |
| Height | 14 mm |
| Protection class | IP 54 opt. |
| PCB Length, Base | 43 mm |
| PCB Width, Base | 75 mm |
| PCB Length, Top | 43 mm |
| PCB Width, Top | 75 mm |
| Keypad Length | 36.1 mm |
| Keypad Width | 54.6 mm |
| Manufacturer | OKW |
