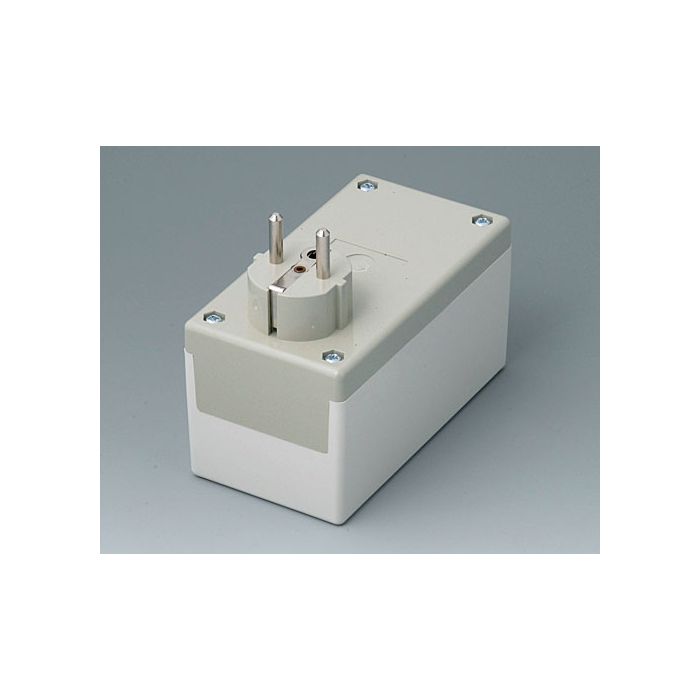

OKW - Two-part plug case, French / German version. Fixing towers for the PCB assembly. Version Without integrated socket, plug according to DIN 49441 R2 Supply 1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fix
Lei 92.00
Lei 77.31
In stock
SKU
A9021665
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Two-part plug case for French/German version without integrated socket. Includes fixing towers for PCB assembly and assembly kit with screws.
Two-part plug case, French / German version. Fixing towers for the PCB assembly. Version Without integrated socket, plug according to DIN 49441 R2 Supply 1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Material | PC+ABS (UL 94 V-0) |
|---|---|
| Colour | Bottom part with plug section pebble grey RAL 7032, Top part off-white RAL 9002 |
| Standards | RoHS compliant, DIN 49441 R2, REACH compliant |
| Width | 65 mm |
| Length | 120 mm |
| Height | 65 mm |
| PCB Length, Base | 96 mm |
| PCB Width, Base | 58 mm |
| PCB Length, Top | 95 mm |
| PCB Width, Top | 58.5 mm |
| Manufacturer | OKW |
