OKW - Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with gr
Lei 82.00
Lei 68.91
In stock
SKU
C2122401
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

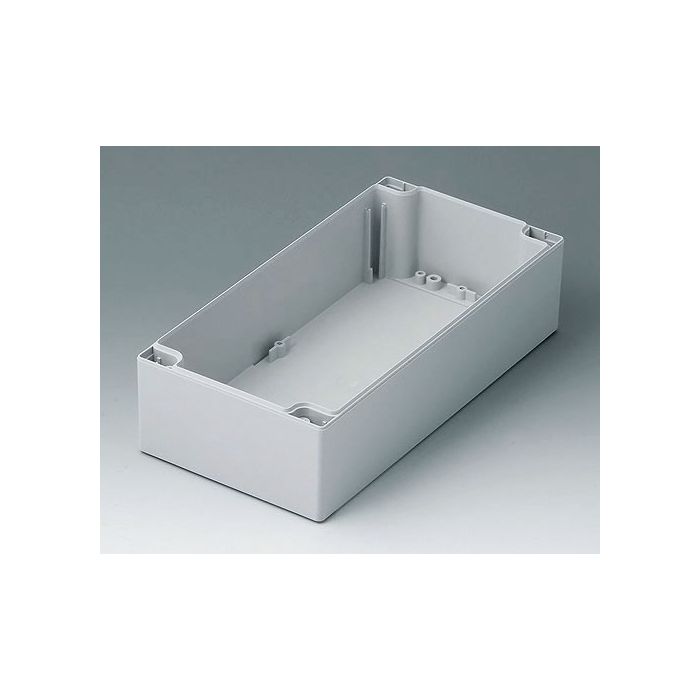

Threaded case shell with fixing towers, suitable for top or bottom use. Features 0.8 mm recess for membrane keyboards. Each set includes one part with tongue and one part with groove.
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case. Supply 1 case shell with tongue.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 120 mm |
| Length | 240 mm |
| Height | 60 mm |
| PCB Length, Base | 200 mm |
| PCB Width, Base | 105 mm |
| Keypad Length | 202.65 mm |
| Keypad Width | 105.4 mm |
