OKW - Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with gr
Lei 57.00
Lei 47.90
In stock
SKU
C1121201
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

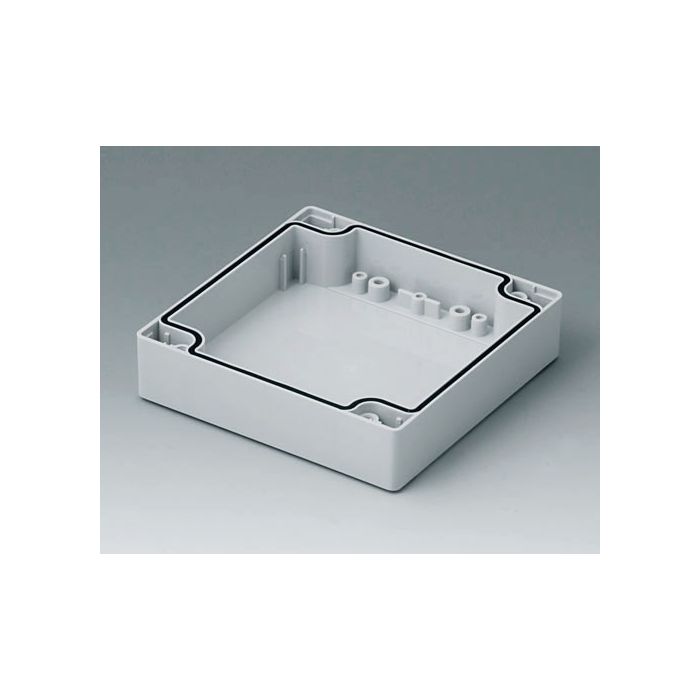

Threaded case shell with fixing towers, suitable for top or bottom use, with recess for membrane keyboards.
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case. Supply 1 case shell with groove.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 120 mm |
| Length | 120 mm |
| Height | 30 mm |
| PCB Length, Top | 81 mm |
| PCB Width, Top | 105 mm |
| Keypad Length | 82.7 mm |
| Keypad Width | 105.5 mm |
