OKW - Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring. Location bars for a PCB are provided in the top part; after assembly of the e
Lei 70.00
Lei 58.82
In stock
SKU
B1608117
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Modern small enclosure for wearable technologies, with three-part design, internal power supply options, and accessories like wrist strap and fastening kit.

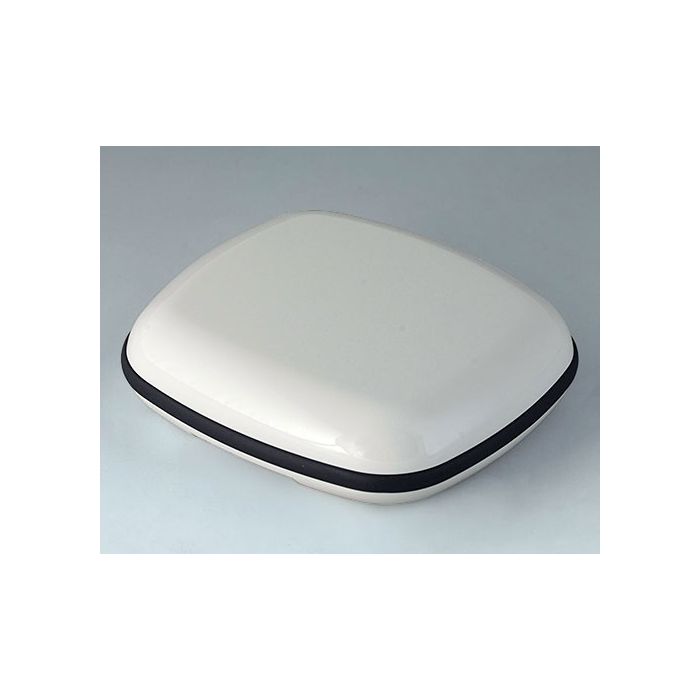

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively. Wrist strap, fastening kit etc. as accessories. Note For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible. Version Without recess Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA (UL 94 HB), TPV 50A |
| Colour | Bottom and top part traffic white RAL 9016, Sealing ring lava |
| Standards | RoHS compliant, REACH compliant |
| Width | 56 mm |
| Length | 62 mm |
| Height | 18 mm |
| Protection class | IP 65 |
| PCB Length, Base | 53.8 mm |
| PCB Width, Base | 38 mm |
| PCB Length, Top | 53.8 mm |
| PCB Width, Top | 46.2 mm |
