OKW - Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealeing area. Recess of approx. 0.8 mm for use
Lei 94.00
Lei 78.99
In stock
SKU
C2008081
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Robust plastic enclosure, versatile for electrical and electronic applications. Features threads, fixing towers, and recess for membrane keyboards. Includes 2 case shells with sealing, cover strips, and assembly kit.

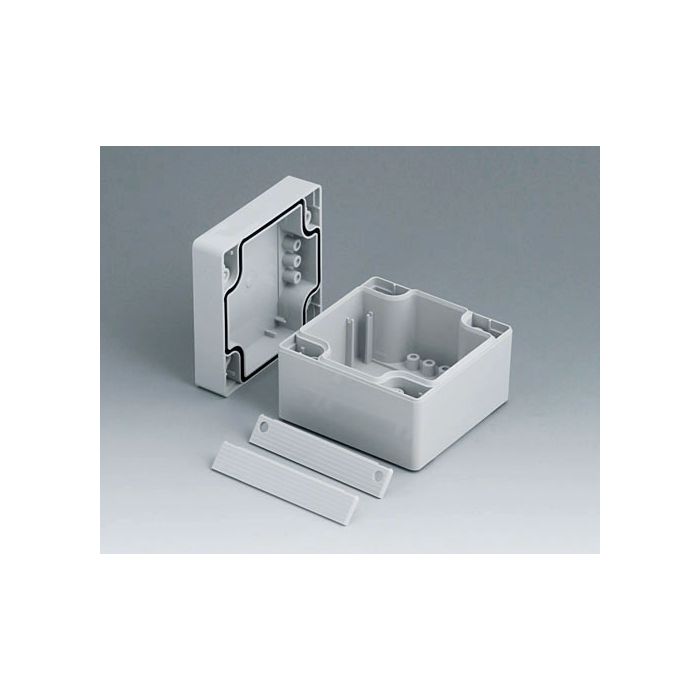

Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealeing area. Recess of approx. 0.8 mm for use of membrane keyboards. Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 80 mm |
| Length | 80 mm |
| Height | 60 mm |
| Protection class | IP 66 |
| PCB Length, Base | 40 mm |
| PCB Width, Base | 65 mm |
| PCB Length, Top | 40 mm |
| PCB Width, Top | 65 mm |
| Keypad Length | 42.5 mm |
| Keypad Width | 65.4 mm |
