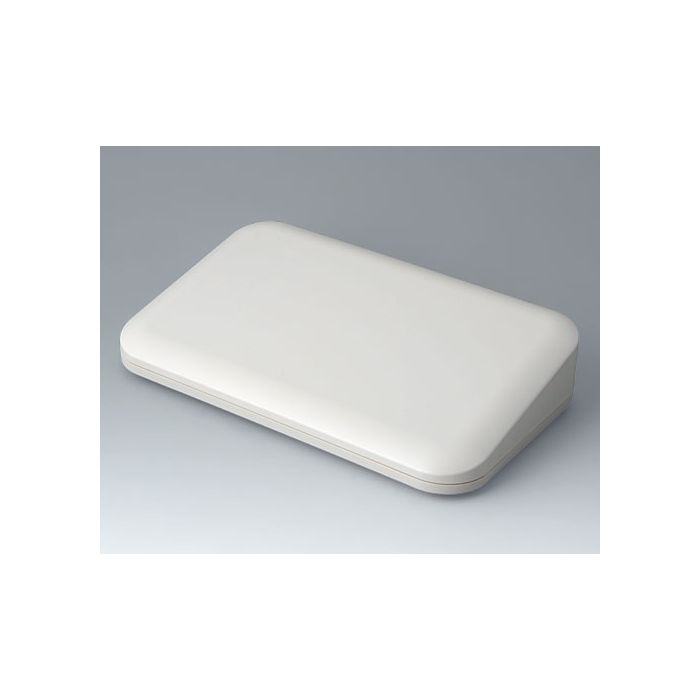

OKW - 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening
Lei 118.00
Lei 99.16
In stock
SKU
A9485107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Robust 2-part plastic enclosure with 12° inclined operating panel, tongue and groove connection, Torx drive screws, IP 65 protection seal available, fastening pillars for PCBs, separate wall suspension element.
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 155 mm |
| Length | 250 mm |
| Height | 54 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 240 mm |
| PCB Width, Base | 100 mm |
| PCB Length, Top | 240 mm |
| PCB Width, Top | 100 mm |
