OKW - Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 1.4 mm. Fastening pillars for mounting of PCBs in top, base and front part. Version With battery
Lei 188.00
Lei 157.98
In stock
SKU
B4054337
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

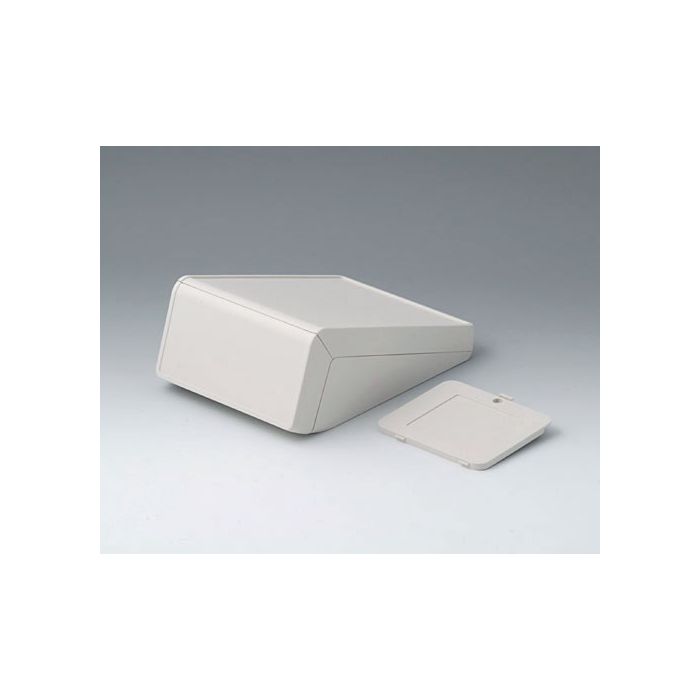

Plastic enclosure with two rectangular operating panels, recessed front part by 0.6 mm, top part by 1.4 mm. Features fastening pillars for PCB mounting, battery compartment for 5 x AA, and assembly kit.
Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 1.4 mm. Fastening pillars for mounting of PCBs in top, base and front part. Version With battery compartment 5 x AA. Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 125 mm |
| Height | 69 mm |
| Depth | 177 mm |
| Protection class | IP 40 |
| PCB Length, Base | 134 mm |
| PCB Width, Base | 112 mm |
| PCB Length, Top | 148 mm |
| PCB Width, Top | 112 mm |
| Keypad Length | 149 mm |
| Keypad Width | 108.4 mm |
