OKW - Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Version With ba
Lei 70.00
Lei 58.82
In stock
SKU
A9051118
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

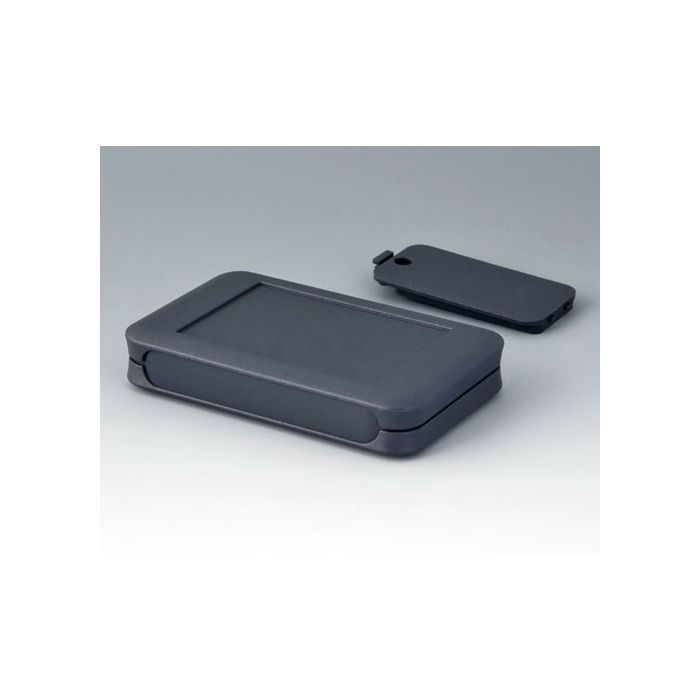

Pocket-format case with unique construction, recessed area for membrane keyboards, fixing options for PCBs, battery compartment for 2 x AAA, assembly kit.
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Version With battery compartment for 2 x AAA, accessible from the outside Supply Top and bottom part, battery compartment lid, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | ABS (UL 94 HB) |
|---|---|
| Colour | lava |
| Standards | RoHS compliant, REACH compliant |
| Width | 105 mm |
| Length | 65 mm |
| Height | 19 mm |
| Protection class | IP 40 |
| PCB Length, Base | 26 mm |
| PCB Width, Base | 96 mm |
| PCB Length, Top | 56 mm |
| PCB Width, Top | 96 mm |
| Keypad Length | 46.7 mm |
| Keypad Width | 70.3 mm |
| Manufacturer | OKW |
