OKW - Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealin
Lei 180.00
Lei 151.26
In stock
SKU
C7025084
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Two-piece plastic enclosure with sealing, recessed panel, attachment domes, and stainless steel lock. Includes assembly kit with cover retention and screws.

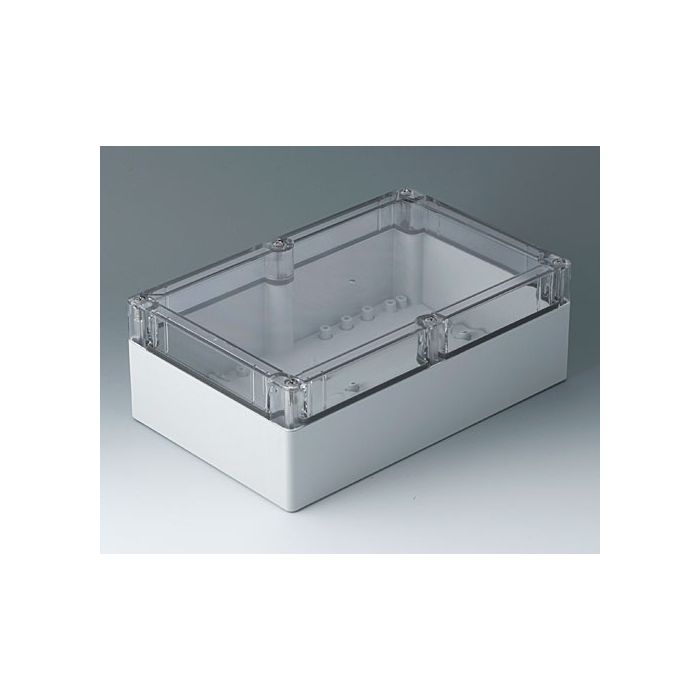

Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area. Supply: 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS/PC (UL 94 HB) |
| Colour | Bottom part light grey RAL 7035, Top part transparent |
| Standards | RoHS compliant, REACH compliant |
| Width | 162 mm |
| Length | 252 mm |
| Height | 90 mm |
| Protection class | IP 66, IP 67, IK 07 |
| PCB Length, Base | 220.5 mm |
| PCB Width, Base | 152.5 mm |
| Keypad Length | 224.65 mm |
| Keypad Width | 134.65 mm |
