OKW - Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealin
Lei 203.00
Lei 170.59
In stock
SKU
C7025091
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Two-piece plastic enclosure with sealing, recessed panel for membrane keyboards, attachment domes for DIN rails and PCBs, stainless steel quick-action lock.

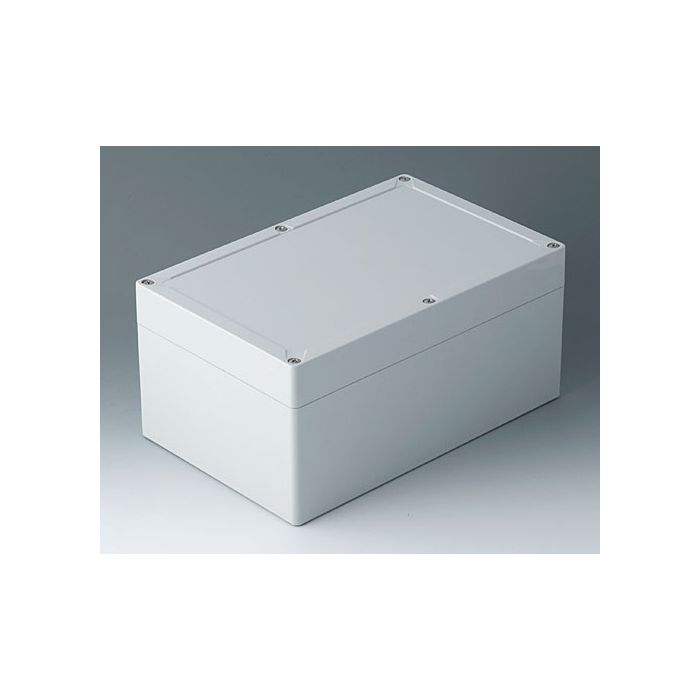

Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 162 mm |
| Length | 252 mm |
| Height | 120 mm |
| Protection class | IP 66, IP 67, IK 07 |
| PCB Length, Base | 220.5 mm |
| PCB Width, Base | 152.5 mm |
| Keypad Length | 224.65 mm |
| Keypad Width | 134.65 mm |
