OKW - Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fasteni
Lei 191.00
Lei 160.50
In stock
SKU
C6015181
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Four-part plastic enclosure with pre-installed sealing, recessed operating area, and fastening pillars for PCBs and DIN-rails.

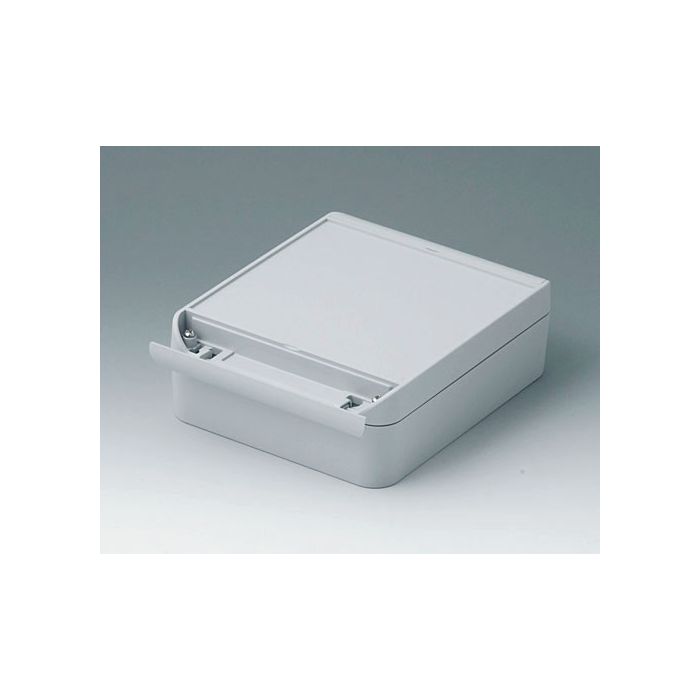

Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails. Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 150 mm |
| Length | 180 mm |
| Height | 60 mm |
| Protection class | IP 66 |
| PCB Length, Base | 141 mm |
| PCB Width, Base | 140 mm |
| PCB Length, Top | 138 mm |
| PCB Width, Top | 139 mm |
| Keypad Length | 135.3 mm |
| Keypad Width | 142 mm |
