OKW - 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel sc
Lei 89.00
Lei 74.79
In stock
SKU
C3206107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
2-part plastic enclosure with integrated flanges for wall mounting or installation on pipes/round profiles. Robust design with tongue and groove connection. Fastening pillars for PCBs and components.

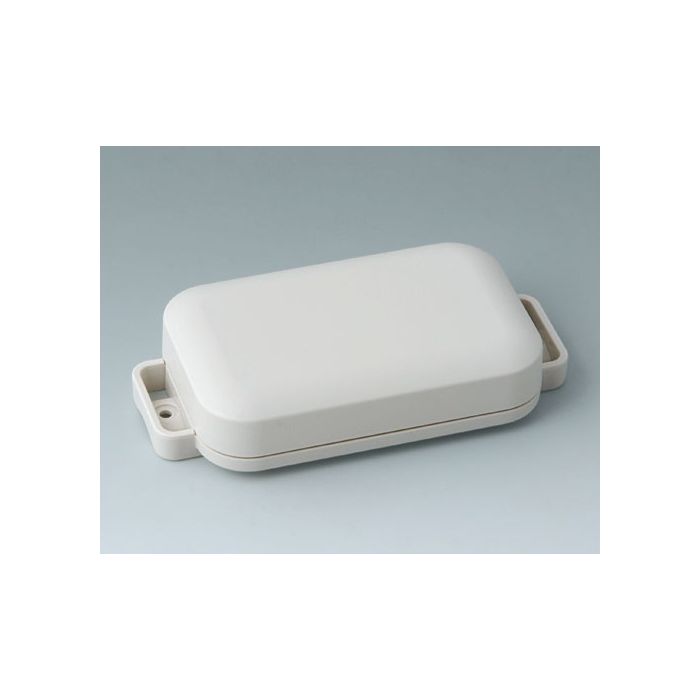

2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 62 mm |
| Length | 121 mm |
| Height | 26 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 90 mm |
| PCB Width, Base | 50 mm |
| PCB Length, Top | 90 mm |
| PCB Width, Top | 50 mm |
