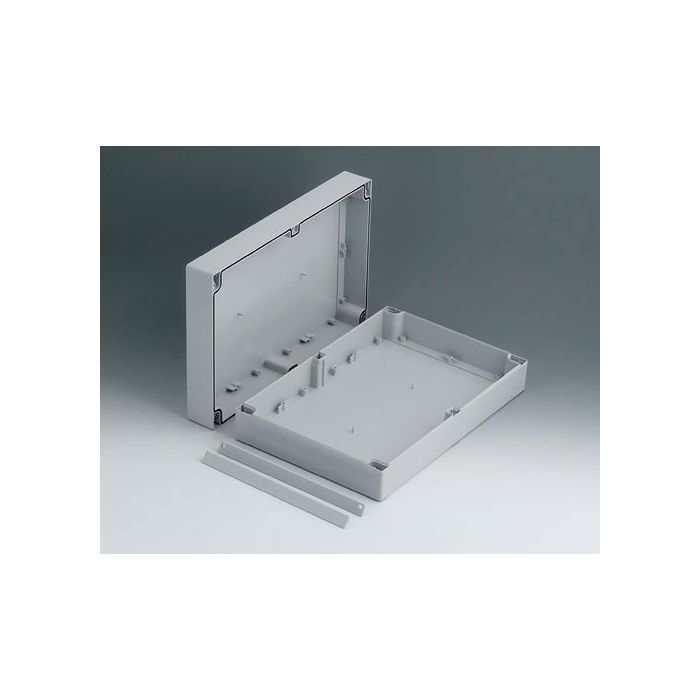

OKW - Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use
Lei 464.00
Lei 389.92
In stock
SKU
C2120301
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Robust plastic enclosure with versatile usage, featuring threads, fixing towers, and membrane keyboard compatibility.
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 200 mm |
| Length | 300 mm |
| Height | 80 mm |
| Protection class | IP 66 |
| PCB Length, Base | 266 mm |
| PCB Width, Base | 167 mm |
| PCB Length, Top | 264 mm |
| PCB Width, Top | 168 mm |
| Keypad Length | 262.6 mm |
| Keypad Width | 171.75 mm |
