OKW - Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Lei 171.00
Lei 143.70
In stock
SKU
B4030621
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

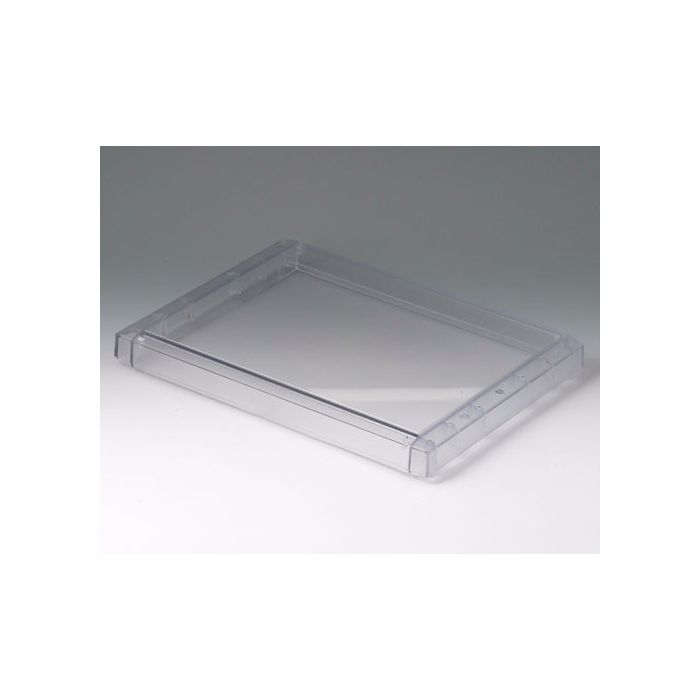

Protective housing suitable for DATEC-TERMINAL L, features recessed operating area for membrane keyboard protection, with screw pillars for PCB fixing.
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | PC (UL 94 V-0) |
|---|---|
| Colour | transparent |
| Standards | RoHS compliant, REACH compliant |
| Width | 302 mm |
| Height | 29 mm |
| Depth | 220 mm |
| PCB Length, Base | 209 mm |
| PCB Width, Base | 264 mm |
| Keypad Length | 195.1 mm |
| Keypad Width | 262.5 mm |
| Manufacturer | OKW |
