OKW - Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR functi
Lei 80.00
Lei 67.23
In stock
SKU
A9051219
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

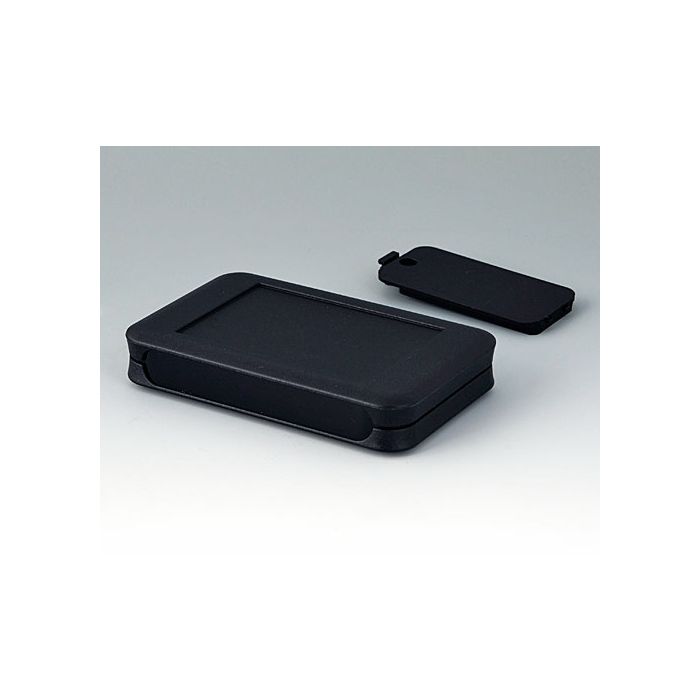

Unique pocket-format case with width-oriented design, recessed area for membrane keyboards, fixing options for PCBs, and optional intermediate rings for added installation height.
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible. Version With battery compartment for 2 x AAA, accessible from the outside Supply Top and bottom part, battery compartment lid, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | PMMA (IR) (UL 94 HB) |
|---|---|
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 105 mm |
| Length | 65 mm |
| Height | 19 mm |
| Protection class | IP 40 |
| PCB Length, Base | 26 mm |
| PCB Width, Base | 96 mm |
| PCB Length, Top | 56 mm |
| PCB Width, Top | 96 mm |
| Keypad Length | 46.7 mm |
| Keypad Width | 70.3 mm |
| Manufacturer | OKW |
