OKW - Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fasteni
Lei 193.00
Lei 162.18
In stock
SKU
C6011201
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

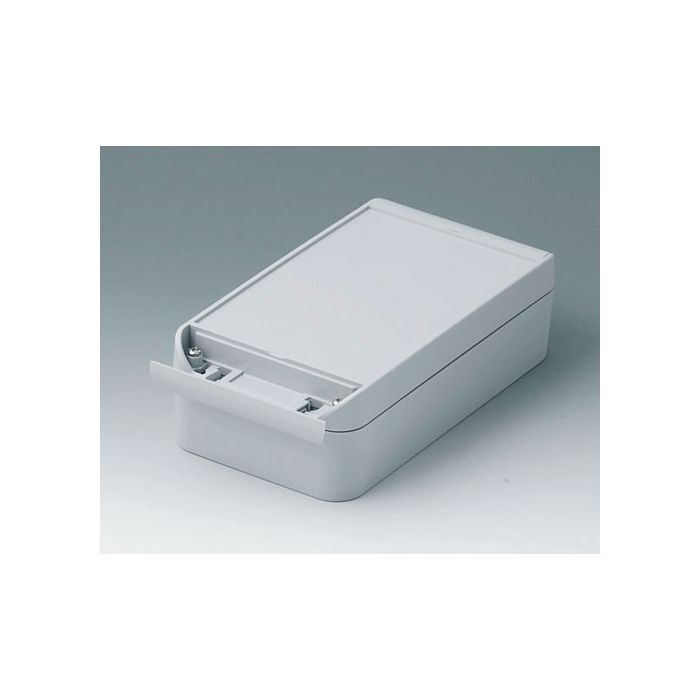

Four-part plastic enclosure with pre-fitted sealing in the top, ideal for design-oriented electrical and electronic applications. Features recessed operating area for membrane keyboard protection and fastening pillars for PCBs and DIN-rails.
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 110 mm |
| Length | 200 mm |
| Height | 60 mm |
| Protection class | IP 66 |
| PCB Length, Base | 161 mm |
| PCB Width, Base | 101 mm |
| PCB Length, Top | 158 mm |
| PCB Width, Top | 99 mm |
| Keypad Length | 155.1 mm |
| Keypad Width | 101.9 mm |
