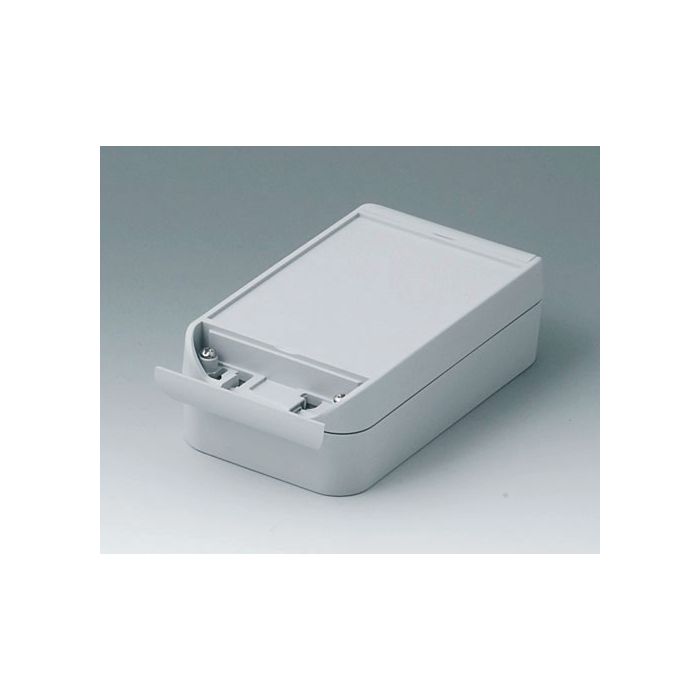

OKW - Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fasteni
Lei 149.00
Lei 125.21
In stock
SKU
C6009161
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Four-part plastic enclosure with pre-fitted sealing, ideal for design-oriented electrical and electronic applications. Features recessed operating area for membrane keyboard protection.
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 90 mm |
| Length | 160 mm |
| Height | 50 mm |
| Protection class | IP 66 |
| PCB Length, Base | 121 mm |
| PCB Width, Base | 81 mm |
| PCB Length, Top | 118 mm |
| PCB Width, Top | 79 mm |
| Keypad Length | 115.2 mm |
| Keypad Width | 81.9 mm |
