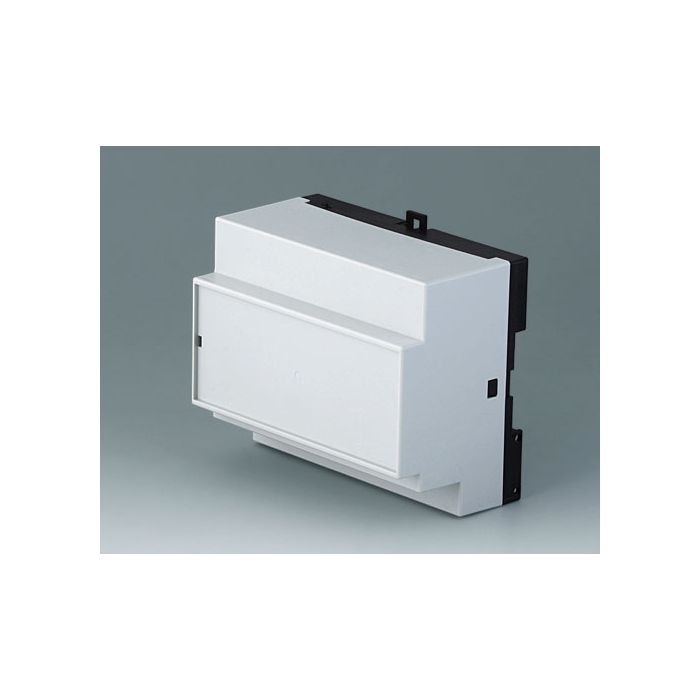

OKW - Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails
Lei 45.00
Lei 37.82
In stock
SKU
B6514113
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Enclosure for larger components with various connection levels and quick assembly on DIN-rails. Suitable for front connectors and D-SUB-connectors.
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs. Closed case, e.g. for front connectors, D-SUB-connectors, etc. 1 base part with locking clip, 1 top part
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PC (UL 94 V-0) Top part, PPO (UL 94 V-0) Bottom part |
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4 |
| Width | 105 mm |
| Height | 86 mm |
| Depth | 59 mm |
| PCB Length, Base | 82.4 mm |
| PCB Width, Base | 99.2 mm |
