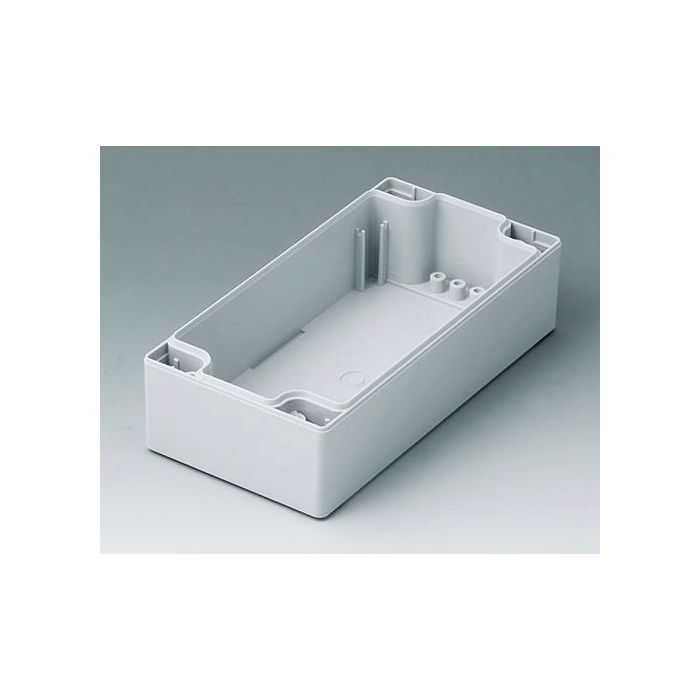

OKW - Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with gr
Lei 33.00
Lei 27.73
In stock
SKU
C1081601
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Versatile case shell with thread and fixing towers, suitable for top or bottom use. Features a recess for membrane keyboards. Each set includes parts with tongue and groove for assembly.
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case. Supply 1 case shell with tongue.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 80 mm |
| Length | 160 mm |
| Height | 40 mm |
| PCB Length, Base | 120 mm |
| PCB Width, Base | 65 mm |
| Keypad Length | 122.6 mm |
| Keypad Width | 65.5 mm |
