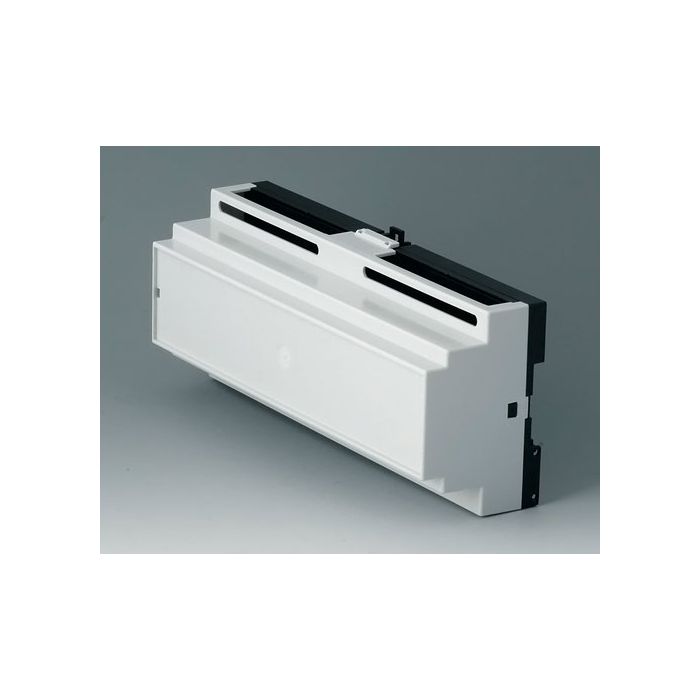

OKW - Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs. For terminal blocks 5.0 /
Lei 76.00
Lei 63.87
In stock
SKU
B6506117
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
DIN 43880 size 1 case for quick assembly on DIN-rails EN 60715 TH35. Features fixing towers, no ventilation slots, and guides for additional PCBs. Compatible with terminal blocks 5.0 / 5.08 (max 32 terminals on bottom). Includes 1 base part with locking clip, 1 top part.
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs. For terminal blocks 5.0 / 5.08 (32 terminals max., only on bottom). 1 base part with locking clip, 1 top part
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PC (UL 94 V-0), PPO (UL 94 V-0) |
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4, IEC 529 |
| Width | 210 mm |
| Height | 90 mm |
| Depth | 58 mm |
| PCB Length, Base | 82 mm |
| PCB Width, Base | 204.2 mm |
