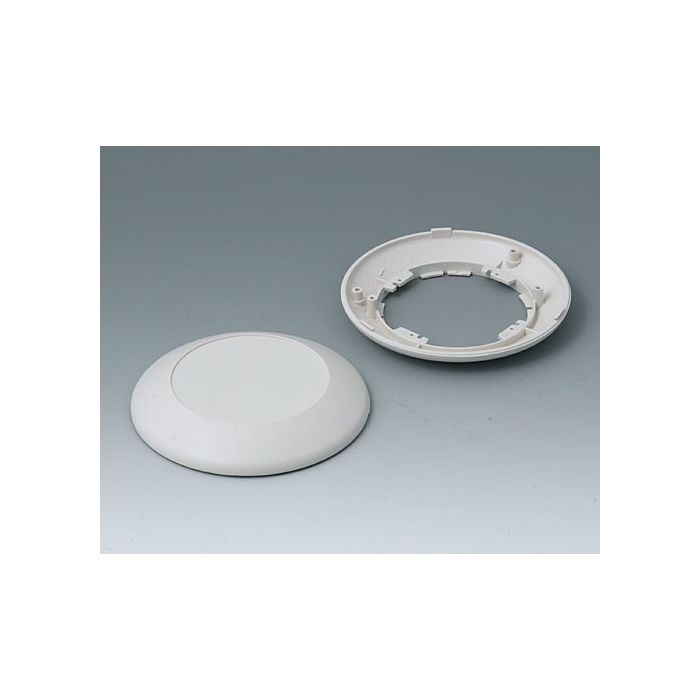

OKW - Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboard
Lei 60.00
Lei 50.42
In stock
SKU
B5010007
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Assembly unit with bayonet lock, screw pillars for PCBs, battery compartment, and recessed area for membrane keyboards. End piece required for bottom part.
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part R110 F, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Height | 30 mm |
| Diameter | ⌀110 mm |
| PCB Length, Base | ⌀82 mm |
| Keypad Length | ⌀72 mm |
