OKW - Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electron
Lei 163.00
Lei 136.97
In stock
SKU
B4418207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

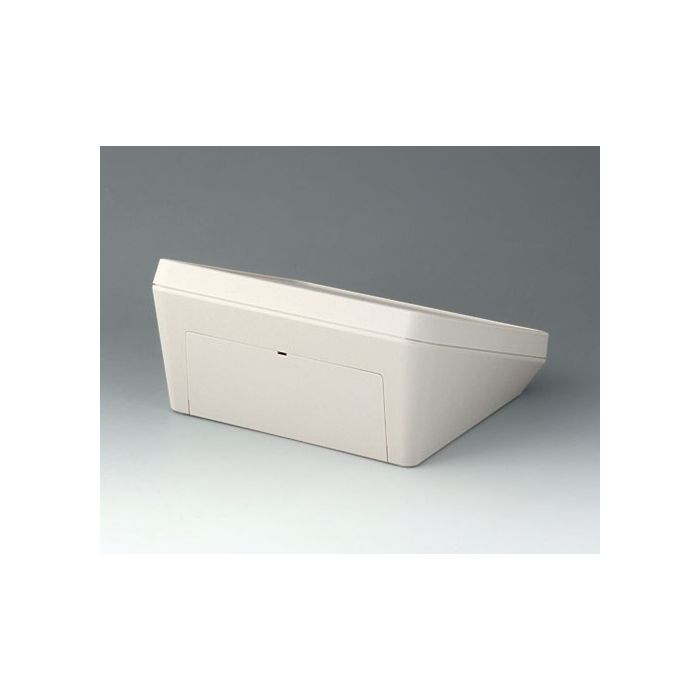

Modern three-piece plastic enclosure with an ergonomically inclined operating panel, snap-on cover, fastening pillars, wall suspension element, and sealing for enhanced protection.
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 180 mm |
| Height | 92 mm |
| Depth | 180 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 102 mm |
| PCB Width, Base | 150 mm |
| PCB Length, Top | 166 mm |
| PCB Width, Top | 166 mm |
| Keypad Length | 169.8 mm |
| Keypad Width | 169.8 mm |
