OKW - Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up
Lei 155.00
Lei 130.25
In stock
SKU
B4418107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Modern two-piece plastic enclosure with inclined operating panel, fastening pillars, recessed interface area, wall suspension element, and sealing for IP 65 protection.

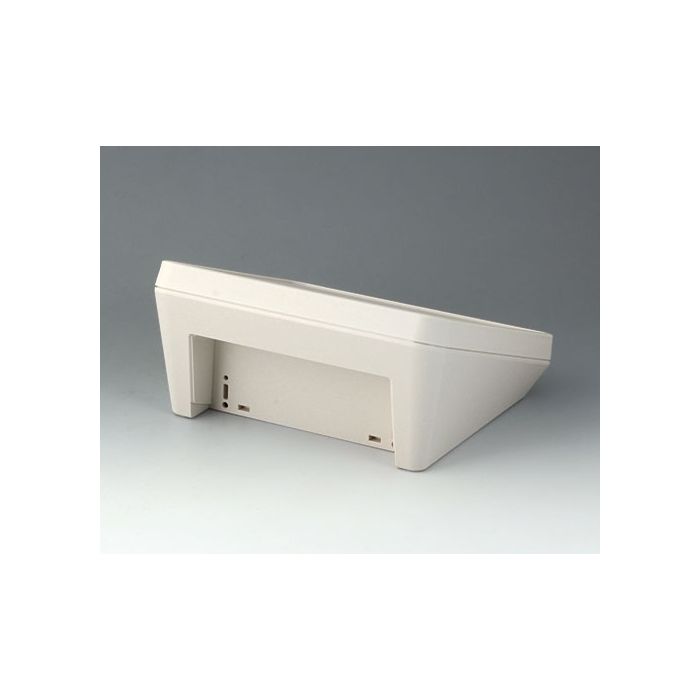

Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 180 mm |
| Length | 180 mm |
| Height | 92 mm |
| Depth | 180 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 102 mm |
| PCB Width, Base | 150 mm |
| PCB Length, Top | 166 mm |
| PCB Width, Top | 166 mm |
| Keypad Length | 169.8 mm |
| Keypad Width | 169.8 mm |
