OKW - Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby
Lei 63.00
Lei 52.94
In stock
SKU
A9060007
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

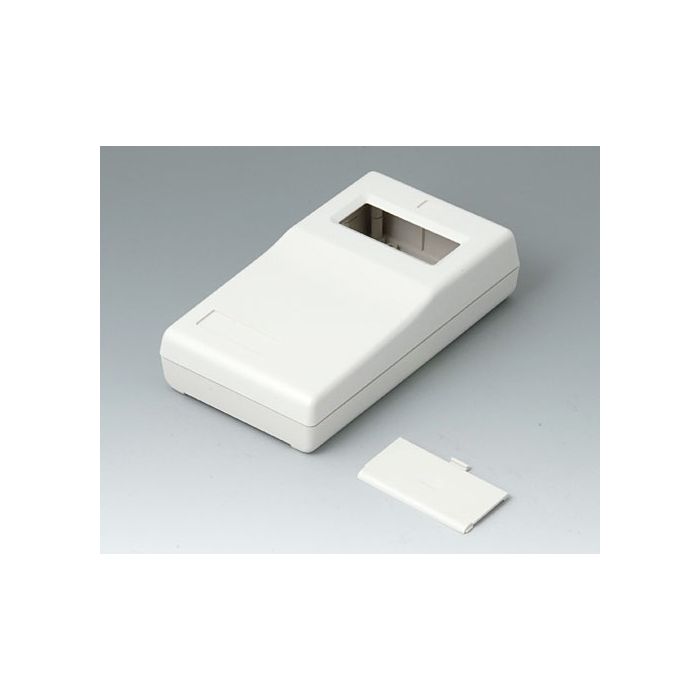

Measuring instruments case with logo imprinting area, LCD module cut-out, battery compartment, and plug accommodation. Version with lateral recess for rocker switch. Includes top and base parts, battery compartment lid, assembly kit.
Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs. Version With lateral recess for rocker switch Supply Top and base part, battery compartment lid, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 80 mm |
| Length | 145 mm |
| Height | 36.5 mm |
| PCB Length, Base | 106 mm |
| PCB Width, Base | 71 mm |
| PCB Length, Top | 106 mm |
| PCB Width, Top | 72 mm |
