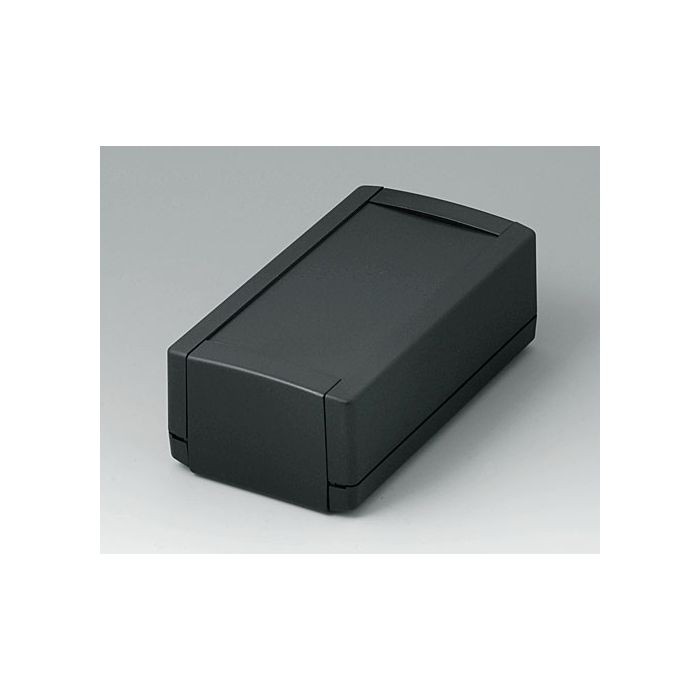

OKW - Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base. Version Without ventilations slots Supply 1 case-top and base, 2 end panels
Lei 88.00
Lei 73.95
In stock
SKU
B1060369
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
High version electronic case with snap-lock system, screw towers for PCB mounting, without ventilation slots. Includes 1 case top and base, 2 end panels. Dimensions: TBD.
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base. Version Without ventilations slots Supply 1 case-top and base, 2 end panels
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | ABS (UL 94 HB) |
|---|---|
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 84 mm |
| Length | 154 mm |
| Height | 56 mm |
| Protection class | IP 40 |
| PCB Length, Base | 147 mm |
| PCB Width, Base | 75 mm |
| PCB Length, Top | 122 mm |
| PCB Width, Top | 75 mm |
| Keypad Length | 125.9 mm |
| Keypad Width | 60.1 mm |
| Manufacturer | OKW |
