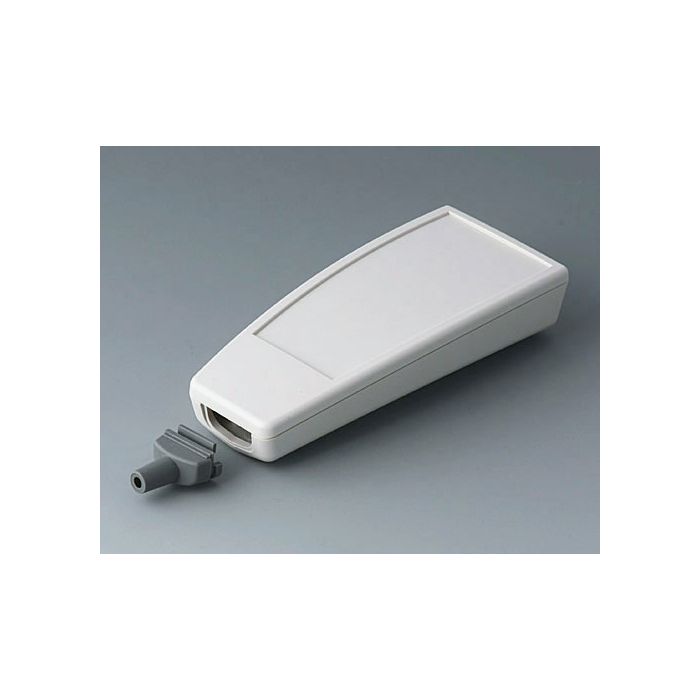

OKW - Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Version Without battery compartment, bottom part with cable
Lei 104.00
Lei 87.39
In stock
SKU
A9067127
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Three-part handheld case with cable bush, suitable for membrane keyboards. PCBs can be fixed in top and base parts. No battery compartment, cable strain (5 - 5.9 mm).
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm) Supply Case-top and base, cable strain, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB), SEBS (TPE) |
| Colour | Enclosure off-white RAL 9002, Cable gland volcano |
| Standards | RoHS compliant, REACH compliant |
| Width | 62.7 mm |
| Length | 140 mm |
| Height | 30.5 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 89 mm |
| PCB Width, Base | 51 mm |
| PCB Length, Top | 117 mm |
| PCB Width, Top | 51 mm |
| Keypad Length | 103.5 mm |
| Keypad Width | 51.2 mm |
