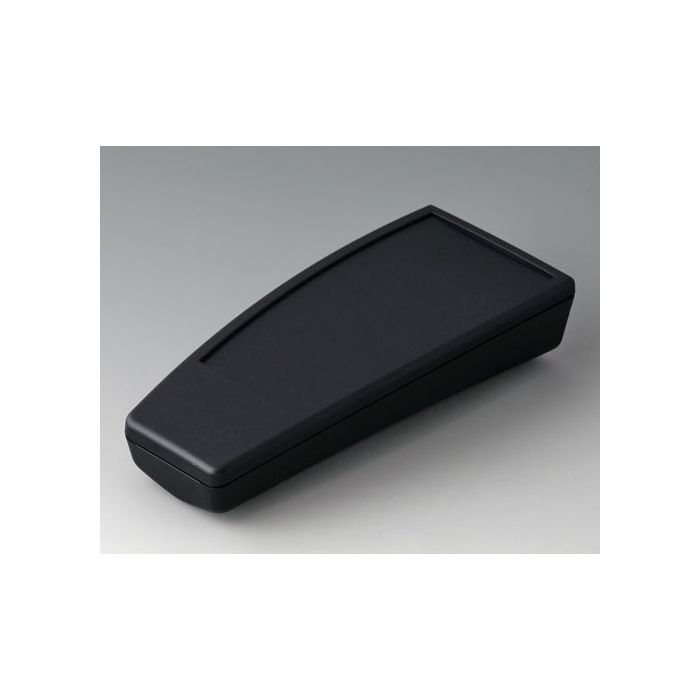

OKW - Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Lei 87.00
Lei 73.11
In stock
SKU
A9067119
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Handheld case with screw connection, no battery compartment, recessed area for membrane keyboards, PCB fixation in top and base parts.
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 62.7 mm |
| Length | 140 mm |
| Height | 30.5 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 89 mm |
| PCB Width, Base | 51 mm |
| PCB Length, Top | 117 mm |
| PCB Width, Top | 51 mm |
| Keypad Length | 103.5 mm |
| Keypad Width | 51.2 mm |
