OKW - Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compar
Lei 101.00
Lei 84.87
In stock
SKU
A9076109
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Hand-Held Case for versatile use with easy operation and display area, suitable for display and graphic modules. Features recessed area for membrane keyboards and battery compartment lid options. Includes assembly kit.

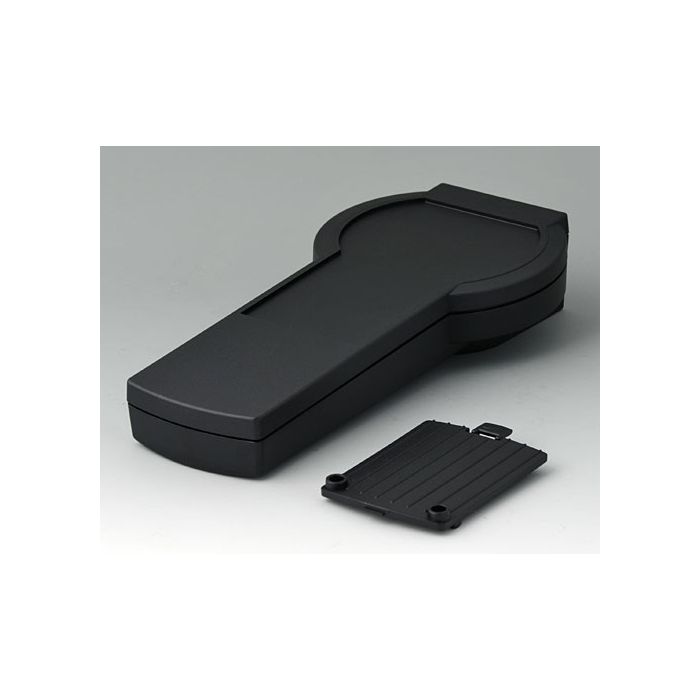

Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory). With closed operating area, recess: 1.6 mm deep. Top and base part, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 94 mm |
| Length | 200 mm |
| Height | 39.5 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 190 mm |
| PCB Width, Base | 46 mm |
| PCB Length, Top | 150 mm |
| PCB Width, Top | 47 mm |
| Keypad Length | 116 mm |
| Keypad Width | 50 mm |
