OKW - Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat batt
Lei 200.00
Lei 168.07
In stock
SKU
A9075207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

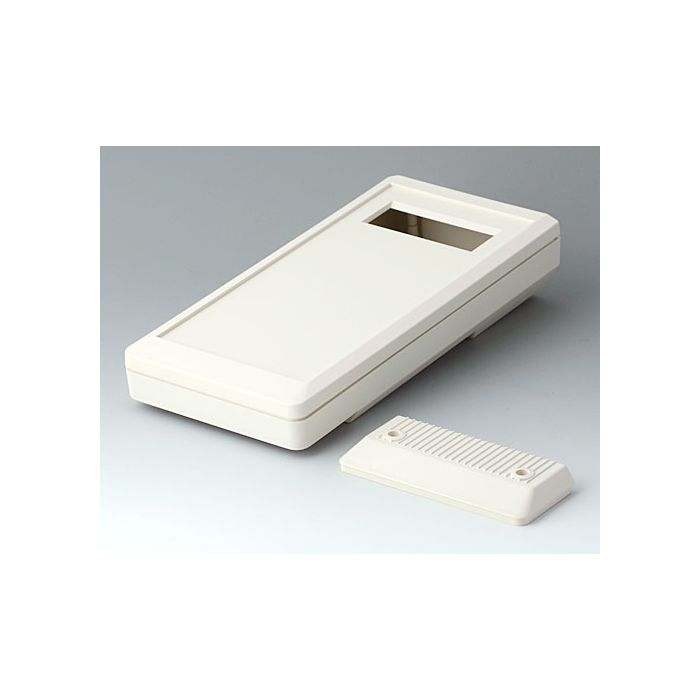

Hand-held box for Eurocard PCBs with large control area, battery compartment, and LCD display cutout.
Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory. Version: Top with display cutout for LCD modules of 20 characters x 4 lines. Supply: Case-top and base, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 121 mm |
| Length | 252 mm |
| Height | 50 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 190 mm |
| PCB Width, Base | 108 mm |
| PCB Length, Top | 241 mm |
| PCB Width, Top | 110 mm |
| Keypad Length | 218.7 mm |
| Keypad Width | 100.7 mm |
