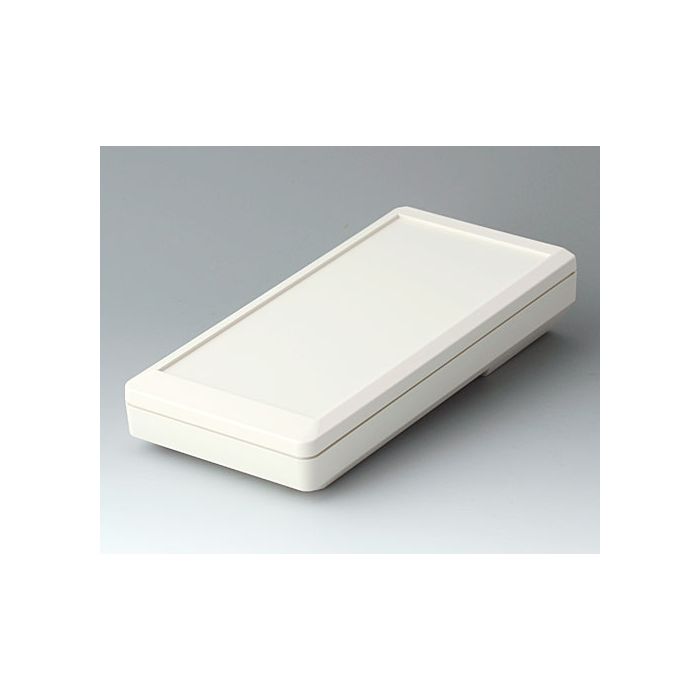

OKW - Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.
Lei 188.00
Lei 157.98
In stock
SKU
A9075117
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Hand-held box for various applications, Eurocard PCB mounting, large control area, IP65 sealing available.
Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 121 mm |
| Length | 252 mm |
| Height | 50 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 237 mm |
| PCB Width, Base | 108 mm |
| PCB Length, Top | 241 mm |
| PCB Width, Top | 110 mm |
| Keypad Length | 218.7 mm |
| Keypad Width | 100.7 mm |
