OKW - Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers. Individual config
Lei 38.00
Lei 31.93
In stock
SKU
B6504229
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

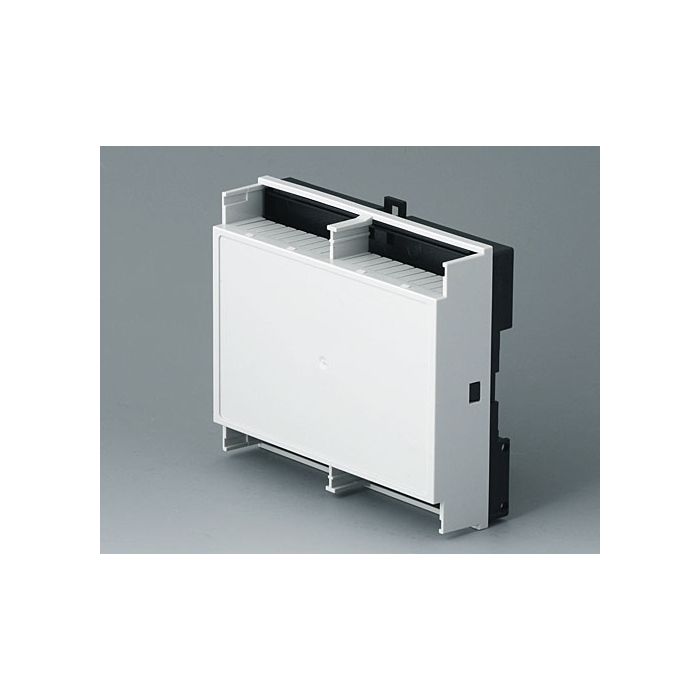

Flat enclosure for up to 4 terminal guards, with open connection sides. Easy locking on DIN rails or wall mounting. Includes base part with fixing towers and locking clip, and top part.
Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers. Individual configuration see accessories. 1 base part with locking clip, 1 top part.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | PC (UL 94 V-0), PPO (UL 94 V-0) |
|---|---|
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4, IEC 529 |
| Width | 105 mm |
| Height | 89.6 mm |
| Depth | 31.25 mm |
| PCB Length, Base | 82 mm |
| PCB Width, Base | 99.2 mm |
| Keypad Length | 60 mm |
| Keypad Width | 97.7 mm |
| Manufacturer | OKW |
