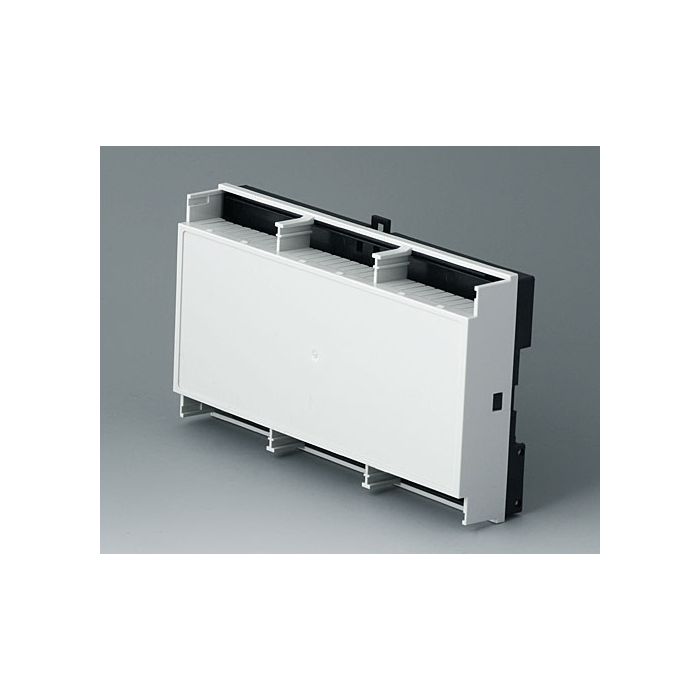

OKW - Enclosure with open connection sides in flat version - for max. 6 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers. Individual config
Lei 43.00
Lei 36.13
In stock
SKU
B6505229
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Flat enclosure for up to 6 terminal guards, with easy DIN rail or wall mounting. Includes base part with fixing towers and locking clip, and top part.
Enclosure with open connection sides in flat version - for max. 6 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers. Individual configuration see accessories. 1 base part with locking clip, 1 top part
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | Top part: PC (UL 94 V-0), Bottom part: PPO (UL 94 V-0) |
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4, IEC 529 |
| Width | 157.5 mm |
| Height | 89.6 mm |
| Depth | 31.25 mm |
| PCB Length, Base | 82 mm |
| PCB Width, Base | 150.9 mm |
| Keypad Length | 60 mm |
| Keypad Width | 150 mm |
