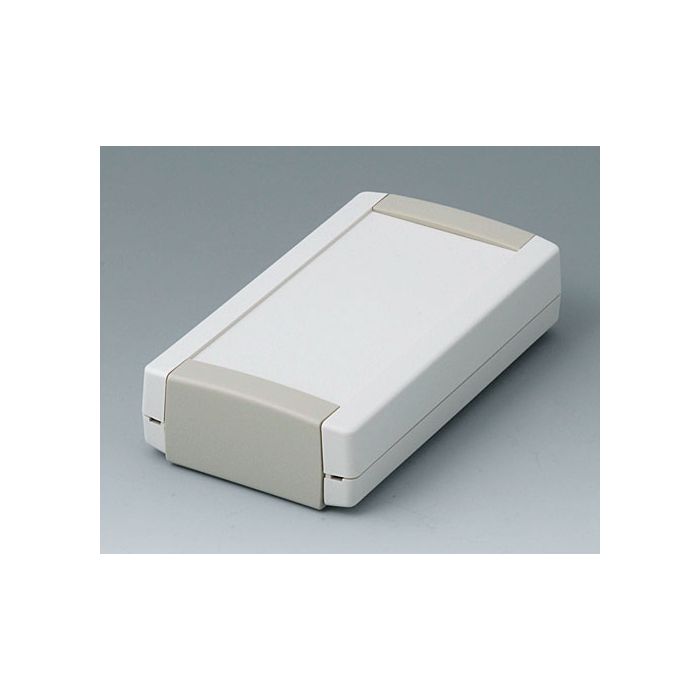

OKW - Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom. Version Without ventilations slots Supply 1 case-top and base, 2 end panels
Lei 72.00
Lei 60.50
In stock
SKU
B1055365
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Flat electronic case with snap-lock mechanism, screw towers for PCB mounting, without ventilation slots. Includes 1 case top and base, 2 end panels. Dimensions: unspecified.
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom. Version Without ventilations slots Supply 1 case-top and base, 2 end panels
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | ABS (UL 94 HB) |
|---|---|
| Colour | Bottom and top part off-white RAL 9002, End panels pebble grey RAL 7032 |
| Standards | RoHS compliant, REACH compliant |
| Width | 68 mm |
| Length | 123 mm |
| Height | 30 mm |
| Protection class | IP 40 |
| PCB Length, Base | 116 mm |
| PCB Width, Base | 60 mm |
| PCB Length, Top | 96 mm |
| PCB Width, Top | 60 mm |
| Keypad Length | 100.5 mm |
| Keypad Width | 48 mm |
| Manufacturer | OKW |
