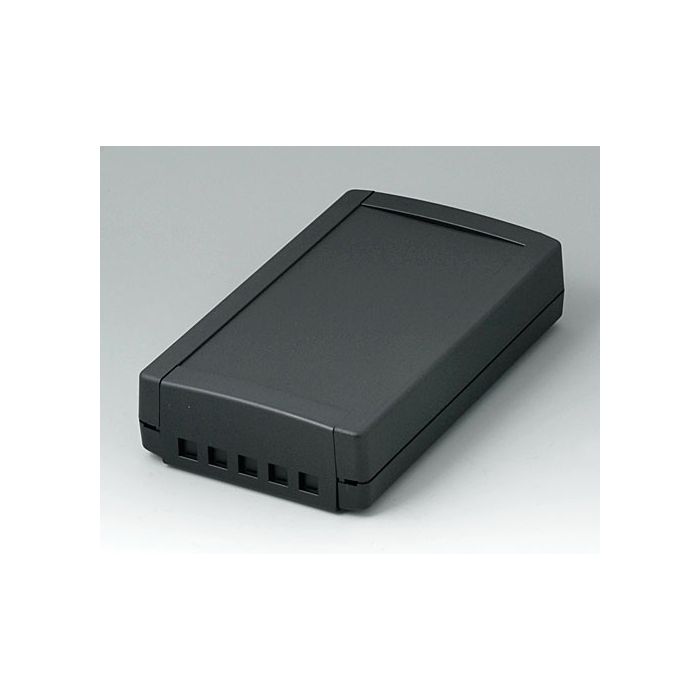

OKW - Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base. Version With ventilations slots Supply 1 case-top and base, 2 end panels
Lei 97.00
Lei 81.51
In stock
SKU
B1075469
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Flat electronic case with snap-lock mechanism, screw towers for PCB mounting, ventilation slots. Includes 1 case top and base, 2 end panels. Dimensions: unspecified.
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base. Version With ventilations slots Supply 1 case-top and base, 2 end panels
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 115 mm |
| Length | 194 mm |
| Height | 46 mm |
| Protection class | IP 40 |
| PCB Length, Base | 183 mm |
| PCB Width, Base | 104 mm |
| PCB Length, Top | 158 mm |
| PCB Width, Top | 106 mm |
| Keypad Length | 163.2 mm |
| Keypad Width | 85 mm |
