OKW - Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary. Supply 1 top and bottom part EL, 2 self-t
Lei 32.00
Lei 26.89
In stock
SKU
B9006806
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

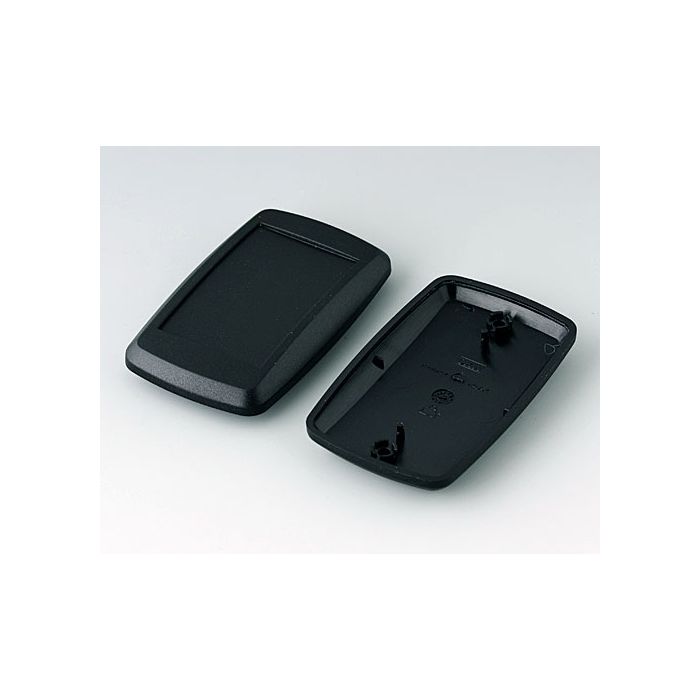

Modern flat assembly unit with recessed operating area for membrane keyboards and fixing supports for PCBs/components.
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary. Supply 1 top and bottom part EL, 2 self-tapping screws
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PMMA (IR) (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 48 mm |
| Length | 78 mm |
| Height | 20 mm |
| PCB Length, Base | 52 mm |
| PCB Width, Base | 40 mm |
| Keypad Length | 51.5 mm |
| Keypad Width | 31.8 mm |
