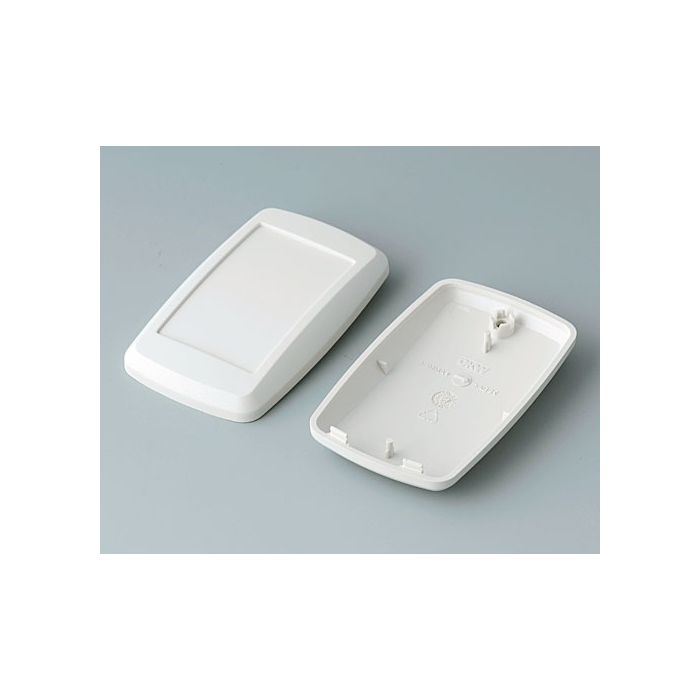

OKW - Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Lei 24.04
Lei 20.20
In stock
SKU
B9004807
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Modern, flat assembly unit with recessed operating area for membrane keyboards and fixing supports for PCBs/components.
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 42 mm |
| Length | 68 mm |
| Height | 18 mm |
| PCB Length, Base | 51 mm |
| PCB Width, Base | 34 mm |
| Keypad Length | 44.7 mm |
| Keypad Width | 27.55 mm |
