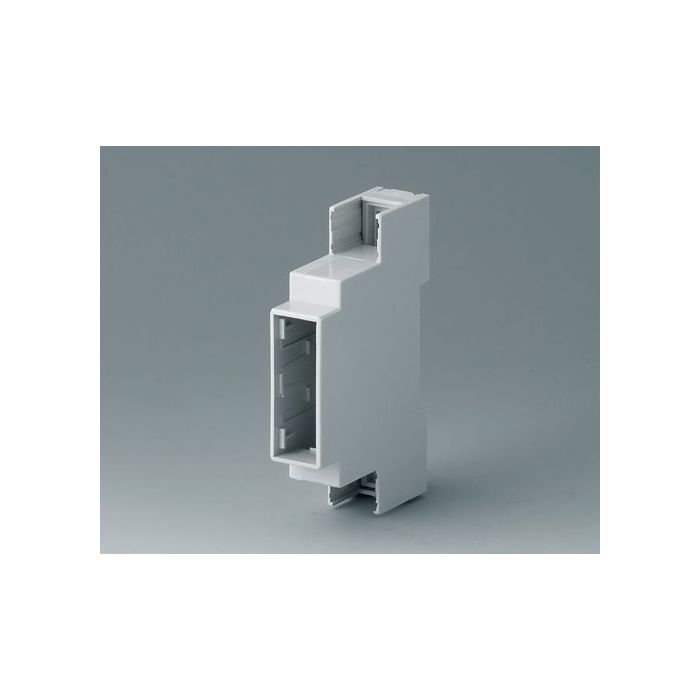

OKW - Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Front panel see accessorie
Lei 23.91
Lei 20.09
In stock
SKU
B6700104
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Enclosure with 2 sides open for connection, fast locking onto DIN EN 60715 (TH35), vertical and horizontal guides for PCB assembly, snap-in installation, front open version with extended case wall.
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Front panel see accessories. Version: Front open, connection side with extended case wall. Supply: 1 bottom part, 2 clips, 1 top part.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PC (UL 94 V-0) |
| Colour | Bottom and top part light grey, Locking clip black/translucent |
| Standards | RoHS compliant, DIN EN 60715 TH35, REACH compliant |
| Width | 17.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
