OKW - Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy asse
Lei 42.00
Lei 35.29
In stock
SKU
B6704106
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

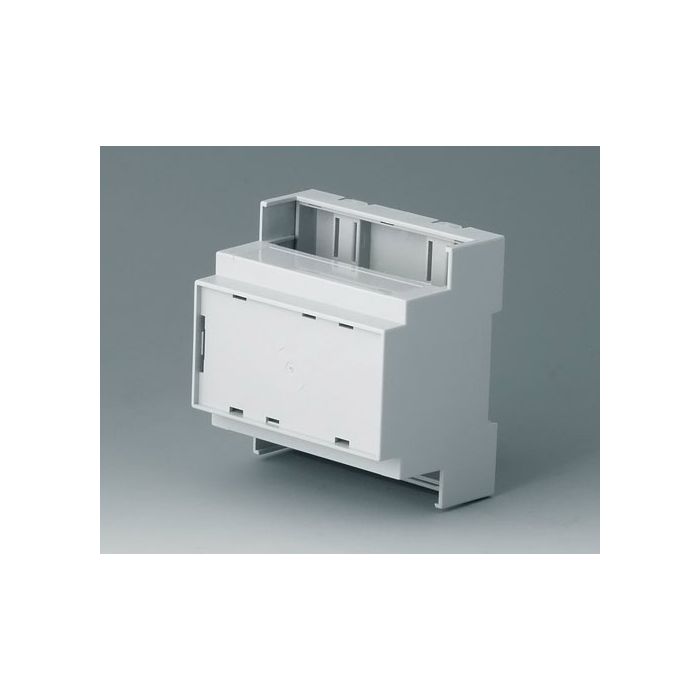

Enclosure with 2 open sides for easy connection, suitable for 2 terminal guards. Securely locks onto DIN EN 60715 (TH35) with fastening pillars. Features vertical and horizontal PCB assembly guides. Easy snap-in assembly. Includes 1 bottom part, 3 clips, 1 top part.
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Front closed, connection side with free through passage. 1 bottom part, 3 clips, 1 top part.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PC (UL 94 V-0) |
| Colour | Bottom and top part light grey, Locking clip black/translucent |
| Standards | RoHS compliant, DIN EN 60715 TH35, REACH compliant |
| Width | 88 mm |
| Height | 90 mm |
| Depth | 58 mm |
