OKW - Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the ca
Lei 39.00
Lei 32.77
In stock
SKU
B6704104
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

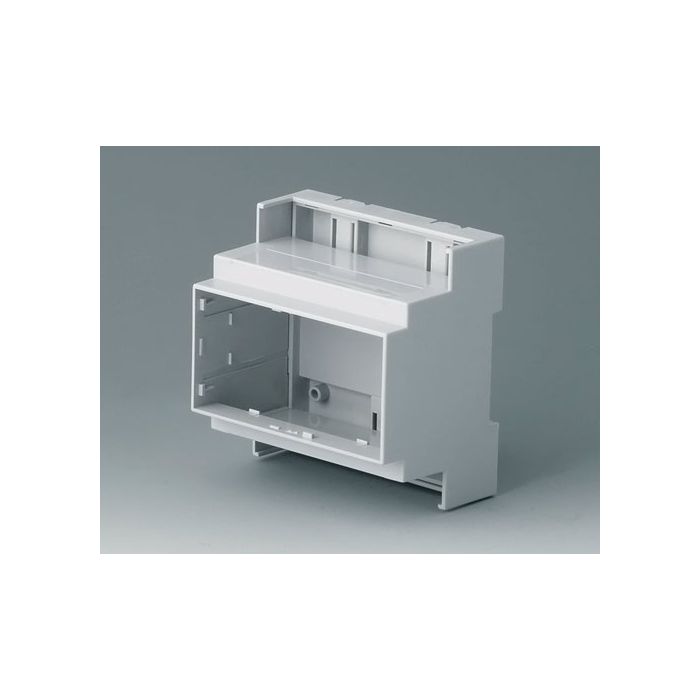

Enclosure with 2 open sides for easy connection and quick locking onto DIN EN 60715 (TH35) rail. Features fastening pillars, vertical and horizontal PCB assembly guides, and snap-in case parts installation. Front open version with extended case wall for stability during transport. Includes 1 bottom part, 3 clips, 1 top part.
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable) Supply 1 bottom part, 3 clips, 1 top part
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PC (UL 94 V-0) |
| Colour | Bottom and top part light grey, Locking clip black/translucent |
| Standards | RoHS compliant, DIN EN 60715 TH35, REACH compliant |
| Width | 88 mm |
| Height | 90 mm |
| Depth | 58 mm |
