OKW - Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs. Closed case, e.g. for front
Lei 47.00
Lei 39.50
In stock
SKU
B6504116
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

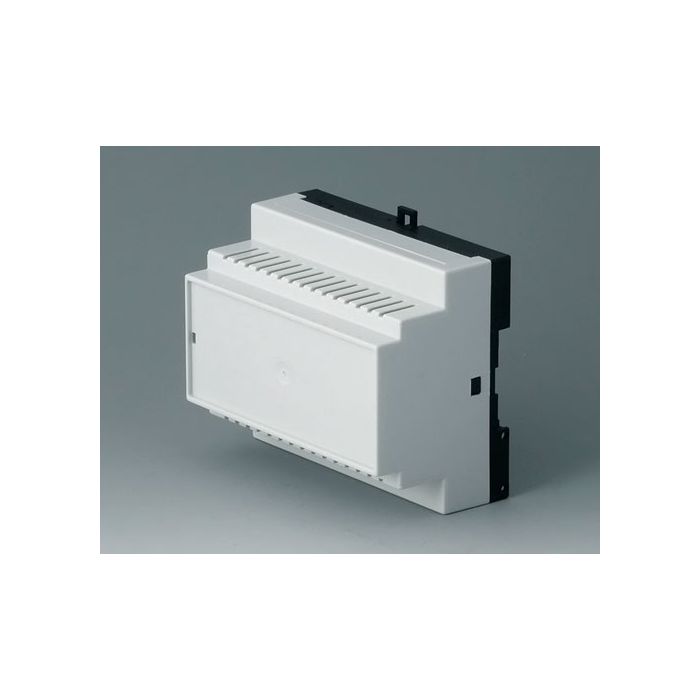

DIN 43880 Size 1 Case with quick assembly on DIN-rails, ventilation slots, and vertical/horizontal guides for PCBs.
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs. Closed case, e.g. for front connectors, D-SUB-connectors, etc. 1 base part with locking clip, 1 top part
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | PC (UL 94 V-0) Top part, PPO (UL 94 V-0) Bottom part |
|---|---|
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4, IEC 529 |
| Width | 105 mm |
| Height | 86 mm |
| Depth | 59 mm |
| PCB Length, Base | 82.4 mm |
| PCB Width, Base | 99.2 mm |
| Manufacturer | OKW |
