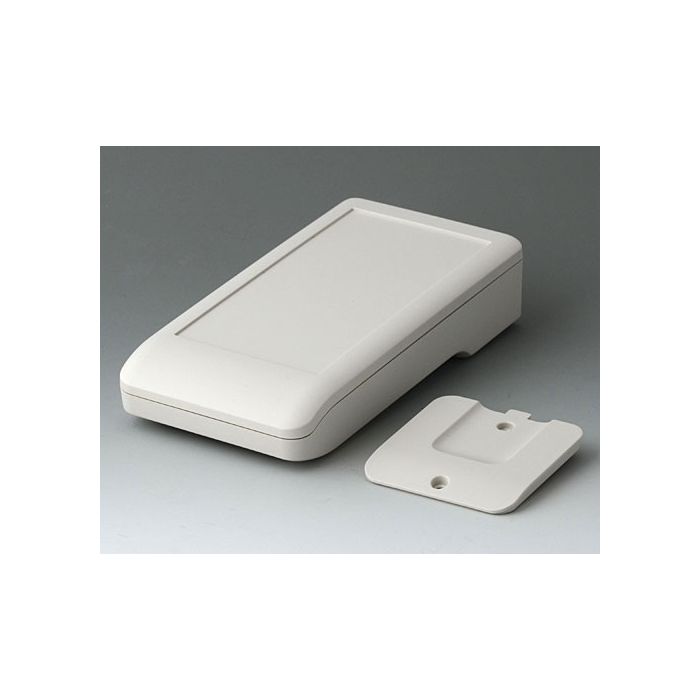

OKW - 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible fr
Lei 155.00
Lei 130.25
In stock
SKU
A9006217
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Compact 3-part handheld enclosure with ergonomic design, ideal for miniaturized electronics applications.
3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | ASA+PC (UL 94 V-0) |
|---|---|
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 92 mm |
| Length | 172 mm |
| Height | 39 mm |
| Protection class | IP 41 |
| PCB Length, Base | 76 mm |
| PCB Width, Base | 77 mm |
| PCB Length, Top | 134 mm |
| PCB Width, Top | 80 mm |
| Keypad Length | 131.5 mm |
| Keypad Width | 69.3 mm |
| Manufacturer | OKW |
