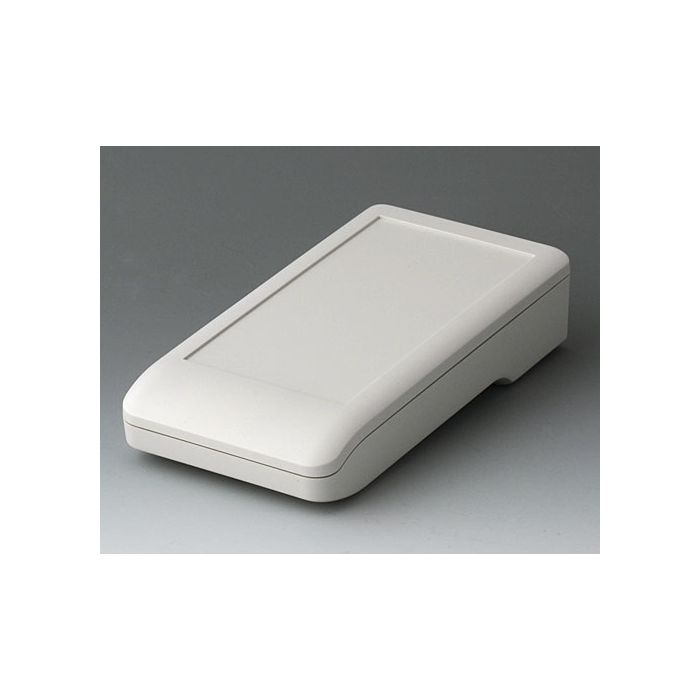

OKW - 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Lei 114.00
Lei 95.80
In stock
SKU
A9006117
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Compact hand-held enclosure with ergonomic design and secure grip. Recessed user area for protection. Attachment domes for PCBs and components.
2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | ASA+PC (UL 94 V-0) |
|---|---|
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 92 mm |
| Length | 172 mm |
| Height | 39 mm |
| Protection class | IP 41 |
| PCB Length, Base | 133 mm |
| PCB Width, Base | 77 mm |
| PCB Length, Top | 134 mm |
| PCB Width, Top | 80 mm |
| Keypad Length | 131.5 mm |
| Keypad Width | 69.3 mm |
| Manufacturer | OKW |
