OKW - Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory. Top with display
Lei 135.00
Lei 113.45
In stock
SKU
A9073409
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

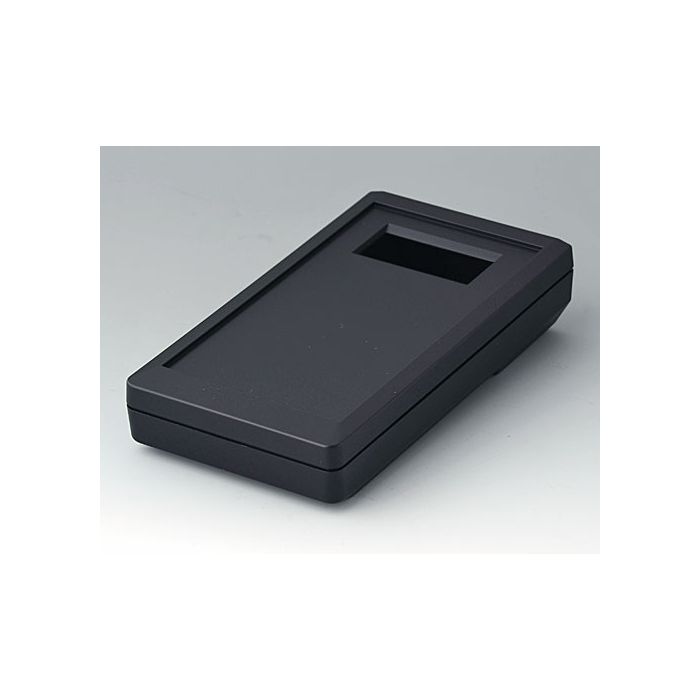

Compact hand-held box with battery compartment, LCD display cutout, and IP65 sealing option.
Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory. Top with display cutout for miniature-LCDs with 4 lines x 20 characters. Case-top and base, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 83 mm |
| Length | 152 mm |
| Height | 33.5 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 104 mm |
| PCB Width, Base | 72 mm |
| PCB Length, Top | 141 mm |
| PCB Width, Top | 72 mm |
| Keypad Length | 129 mm |
| Keypad Width | 67.7 mm |
