OKW - Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in volcano and lava grey plastic side covers. Good access inside for installation and assembly work. Horizontal guides and screw channels
Lei 405.00
Lei 340.34
In stock
SKU
B3407012
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Robust enclosure with aluminium profile, volcano and lava grey plastic covers, good internal access, PCB fitting features, flat areas for interfaces, display protection, cable and connector safeguarding. Assembly kit included with screws, seals, cord seals, wall suspension element, canting kit, square-head nuts.

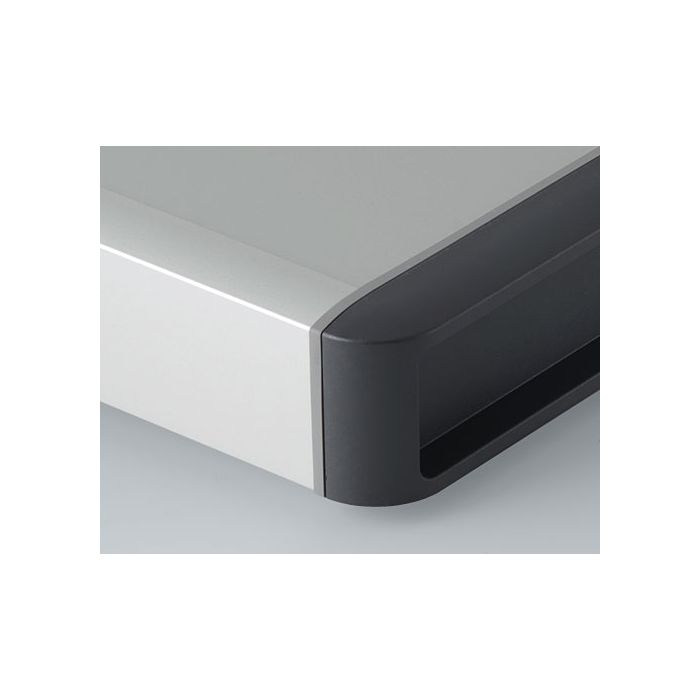

Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in volcano and lava grey plastic side covers. Good access inside for installation and assembly work. Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors. Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles. Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Material | Aluminium AlMgSi 0.5, ASA+PC (UL 94 V-0), TPV 50A |
|---|---|
| Colour | Profiles matt anodised, Side covers lava, Designer seals volcano |
| Standards | RoHS compliant, REACH compliant |
| Width | 170 mm |
| Length | 202 mm |
| Height | 50 mm |
| Protection class | IP 54 |
| PCB Length, Top | 160 mm |
| PCB Width, Top | 117 mm |
| Manufacturer | OKW |
