ERSA - 0ICT1000A - i-CON TRACE IoT soldering station with i-TOOL TRACE, 150 W, WLAN/LAN, antistatic

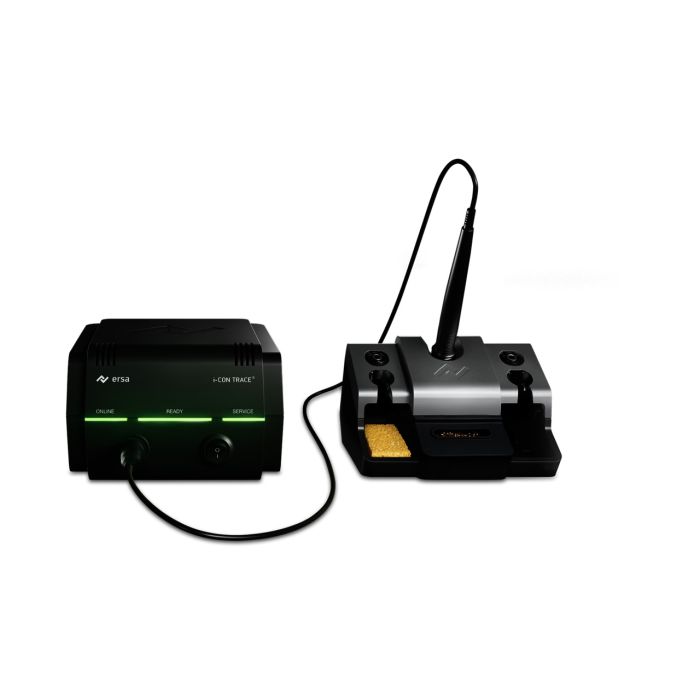

This variant: 0ICT1000A = i-CON TRACE control station 230 V + i-TOOL TRACE soldering iron 150 W (0140CDJ) + soldering tip + holder with Tip'n'Turn. Uses soldering tip series 142. Other versions: 0ICT103A (control station only, without tool). Optional: network card 0ICT125.

100 years after the first electric soldering iron was patented by company founder Ernst Sachs, Ersa has reinvented hand soldering for the digital age. The i-CON TRACE is the world's first fully networkable soldering station. With integrated WLAN, Bluetooth and network card, the system can be fully integrated into MES-controlled production processes, making the complete hand-soldering process traceable and documentable. Fast heating, precise temperature control and outstanding performance at a low purchase price and low follow-up costs.

• The world's first fully networkable (IoT) soldering station: integrated WLAN, Bluetooth and optional network card
• First hand-soldering station with IPC/CFX certification; full MES integration, traceable and documentable hand-soldering process
• Intuitive operation with one switch and three LEDs: green means go
• Ersa TRACE APP (iOS/Android) sets and displays all parameters on any number of stations, in real time, password-protected
• Free ERSA TRACE COCKPIT software for network configuration
• Patented Tip'n'Turn concept: tip change in record time, with the holder or by hand; noticeably cooler handpiece even in continuous operation
• Fast heating, precise temperature control, 50 to 450 °C, 150 W
• Low follow-up costs thanks to separately replaceable soldering tips (series 142)

Temperature range: 50 - 450 °C. Communication: WLAN, LAN (network card 0ICT125), Bluetooth. Operation via LEDs and the Ersa TRACE APP; no display on the station.
